AB308-16.000MHZ-18

Crystals Overview

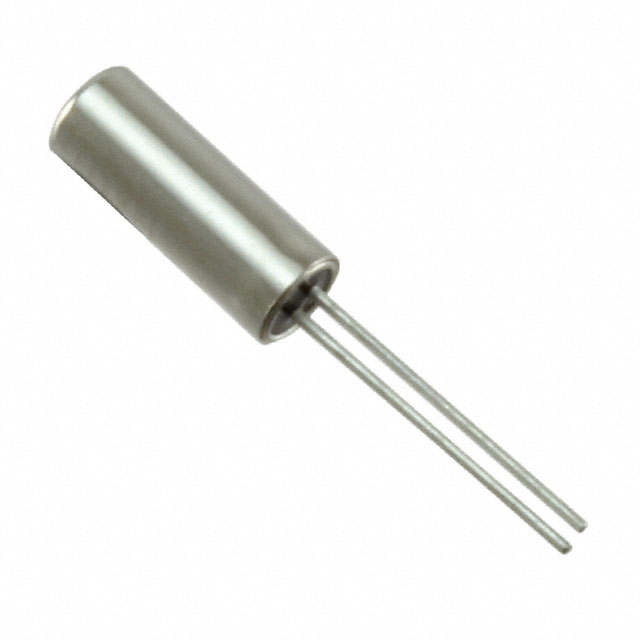

The AB308-16.000MHZ-18 is a parallel fundamental quartz crystal manufactured by Abracon LLC, designed for precision timing applications. It operates at a nominal frequency of 16 MHz with a specified load capacitance of 18 pF. The component features a cylindrical radial through-hole package and exhibits a frequency tolerance of ±30 ppm and a frequency stability of ±50 ppm. It supports an operating temperature range from -10°C to +60°C and includes a series resistance of 50 Ω.

Crystals Feature Summary

• Hermetically sealed cylindrical construction ensures high reliability
• Optimized for microprocessor clocking circuits
• Through-hole mounting configuration

Crystals Applications

• Microprocessor clock generation
• Consumer electronics timing
• Computer system oscillators

Crystals Procurement Notes

Verify the specific suffix codes against official Abracon documentation to confirm exact tolerance and stability ratings. Ensure the selected variant matches the required load capacitance and operating temperature range for the target application design.

Crystals Selection Notes

Select this component when a hermetically sealed, through-hole microprocessor crystal is required. Confirm that the 16 MHz frequency and 18 pF load capacitance align with the oscillator circuit requirements. Verify thermal limits against the operational environment.

Crystals Part Context

This part belongs to Abracon's microprocessor crystal lineup, characterized by cylindrical can packaging. It serves as a fundamental frequency reference for digital logic circuits requiring stable clock signals in consumer and computer hardware environments.

Crystals Replacement Considerations

Cross-reference with other Abracon cylindrical crystals such as the AB308-16.000MHZ or similar models within the same series. Verify mechanical dimensions and electrical parameters before substitution.
