AB3500B1279

Overview

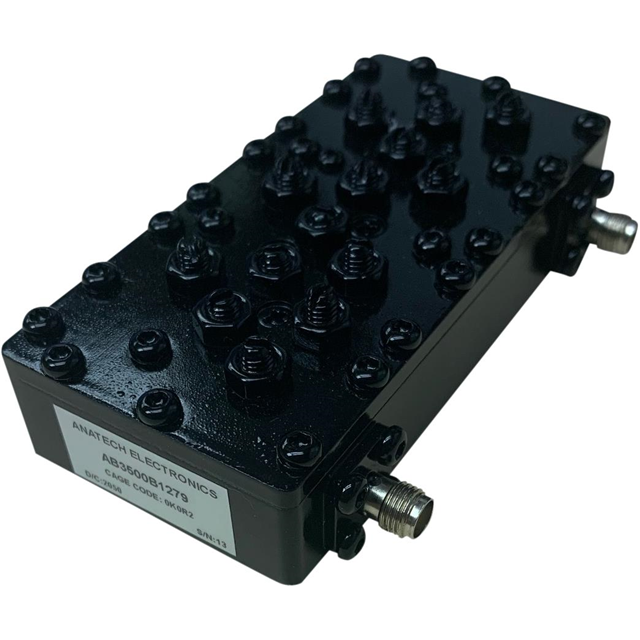

The AB3500B1279 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3.5 GHz and provides a bandwidth of 200 MHz. The component features SMA connectors for interface connectivity.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at 3.5 GHz
• SMA connector interface

Applications

• Radio frequency signal processing
• Communication system filtering

Procurement Notes

Verify the specific datasheet AB3500B1279.pdf for detailed electrical specifications and mechanical drawings before integration. Confirm connector type and mounting requirements match your system design. Ensure compatibility with operating frequencies around 3.5 GHz.

Selection Notes

Select this component when a fixed center frequency of 3.5 GHz with 200 MHz bandwidth is required. The SMA interface dictates connection methodology. Cavity construction suggests suitability for applications requiring robust filtering characteristics in radio frequency environments.

Part Context

Anatech Electronics Inc. specializes in RF filters, including cavity and waveguide types. This model belongs to their line of band pass filters designed for specific frequency bands. The product series includes various center frequencies and bandwidth configurations for different RF applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify exact electrical parameters against potential alternatives from the same manufacturer or other suppliers to ensure functional equivalence.
