AB3500B510

Overview

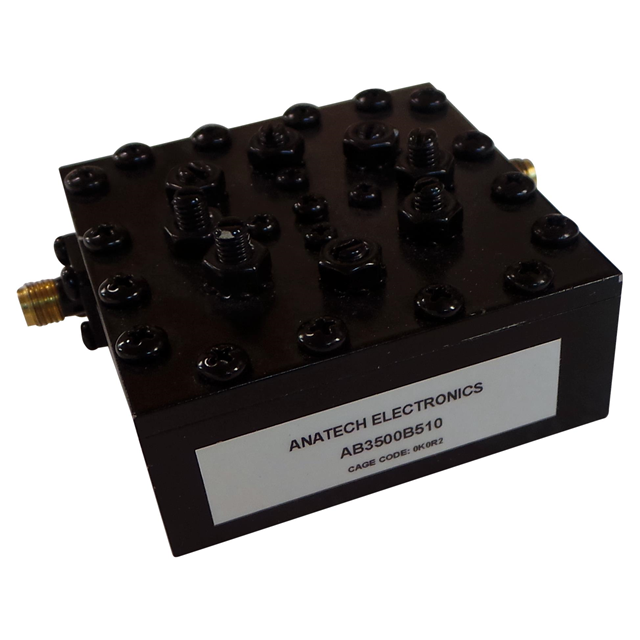

The AB3500B510 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 3.5 GHz and provides a bandwidth of 200 MHz. The component exhibits an insertion loss of 2 dB. It is constructed as a module featuring SMA connectors for interface connectivity.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 3.5 GHz
• SMA connector integration

Applications

• Radio Frequency signal processing
• Telecommunications infrastructure
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version and connector orientation prior to procurement. Confirm that the SMA connector gender and cable assembly requirements match the system design. Ensure environmental specifications align with the intended operating conditions. Cross-reference the manufacturer part number with authorized distributor listings to confirm authenticity and availability status.

Selection Notes

Select this component when a fixed 3.5 GHz center frequency with 200 MHz bandwidth is required. The 2 dB insertion loss specification should be evaluated against system link budget constraints. The SMA interface dictates the necessary cabling and adapter hardware for integration into the RF chain.

Part Context

This part belongs to the Anatech Electronics cavity filter series, designed for high-performance RF applications. Similar models in the lineup vary by center frequency and bandwidth specifications while maintaining comparable modular construction standards.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative cavity filters from the same manufacturer based on matching electrical parameters.
