AB3X2X3SM

Overview

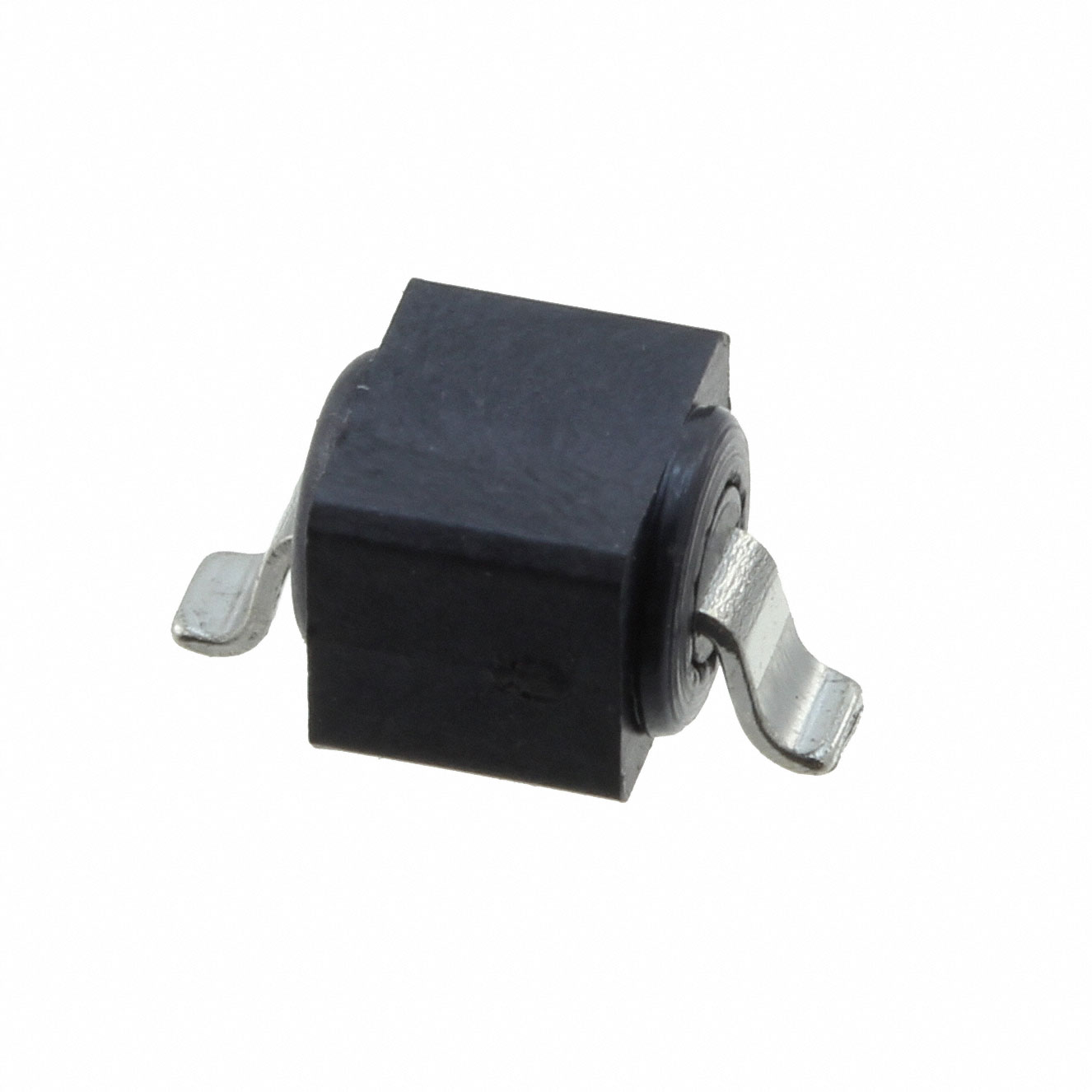

The AB3X2X3SM is a single-line ferrite bead chip manufactured by Toshiba Semiconductor and Storage. It features a 2-SMD gull wing package with dimensions of 5.00mm x 5.00mm and a maximum height of 4.30mm. The component belongs to the Amobeads series and has a typical current rating of 6A. It is designed for surface mount installation and complies with RoHS3 standards. The part status is officially listed as obsolete.

Feature Summary

• Single-line ferrite bead construction for noise suppression
• Gull wing surface mount package design
• High current handling capability

Applications

• General purpose noise filtering in electronic circuits
• Signal line protection in consumer electronics
• Power supply noise attenuation

Procurement Notes

This component is confirmed as obsolete by the manufacturer. Availability is limited to existing stock or secondary market sources. Verify authenticity and condition carefully when sourcing from non-authorized distributors. Check datasheets for updated handling specifications if available.

Selection Notes

Consider the 6A typical current rating and 2-SMD footprint when evaluating alternatives. Ensure replacement components match the required package type and electrical characteristics. Review official documentation for impedance curves and frequency response data to confirm suitability for specific circuit requirements.

Part Context

Part of the Amobeads series, this ferrite bead is designed for surface mount applications. It provides electromagnetic interference suppression in compact electronic designs. The gull wing package facilitates automated assembly processes.

FAQ

What is the package type of the AB3X2X3SM?

It uses a 2-SMD gull wing package.

Is the AB3X2X3SM currently in production?

No, the part status is listed as obsolete.
