AB3X2X3W

Overview

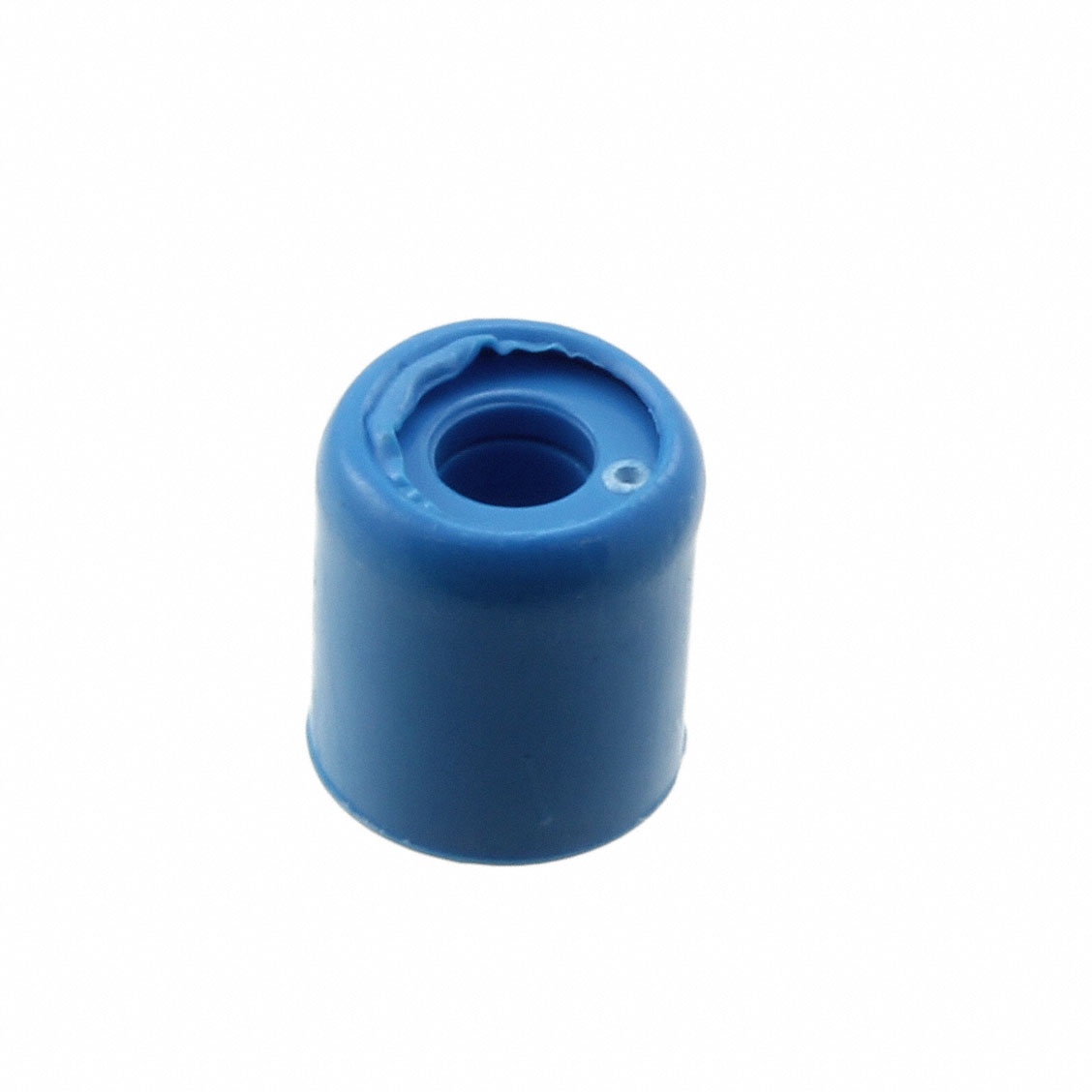

The AB3X2X3W is a solid ferrite core from the Amobeads® series, designed for free-hanging mounting to suppress electromagnetic interference. It features a cylindrical geometry with an inner diameter of 1.50mm and an outer diameter of 4.00mm. The component has a length of 4.50mm and is constructed from high-permeability ferrite material. This part is intended for use in cable applications where common-mode noise reduction is required without soldering.

Feature Summary

• Solid ferrite construction for effective common-mode noise suppression
• Free-hanging design allows for easy installation on cables
• Cylindrical shape accommodates standard wire gauges

Applications

• Electromagnetic interference suppression on signal cables
• Noise filtering in consumer electronic wiring
• Common-mode choke implementation for data lines

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status as per current regulatory requirements. Check for obsolescence notices since this product may be discontinued. Ensure storage conditions prevent moisture damage prior to use. Validate physical dimensions against design specifications before integration.

Selection Notes

Select based on cable diameter compatibility with the 1.50mm inner diameter. Consider impedance characteristics at target frequencies for effective noise suppression. Evaluate mechanical stability requirements for free-hanging applications. Compare performance metrics against alternative ferrite materials if specific frequency ranges are critical. Ensure packaging supports handling during assembly processes.

Part Context

This component belongs to Toshiba's Amobeads® series of passive filters. It serves as a non-solderable solution for EMI mitigation in various electronic assemblies. The series offers multiple sizes to accommodate different cable diameters and noise profiles.

Replacement Considerations

• AB3X2X3SM
• AB3X2X4.5W

FAQ

What is the inner diameter of the AB3X2X3W?

The inner diameter is 1.50mm.

Is the AB3X2X3W RoHS compliant?

Yes, it is lead-free and RoHS compliant.
