AB3X2X6W

Overview

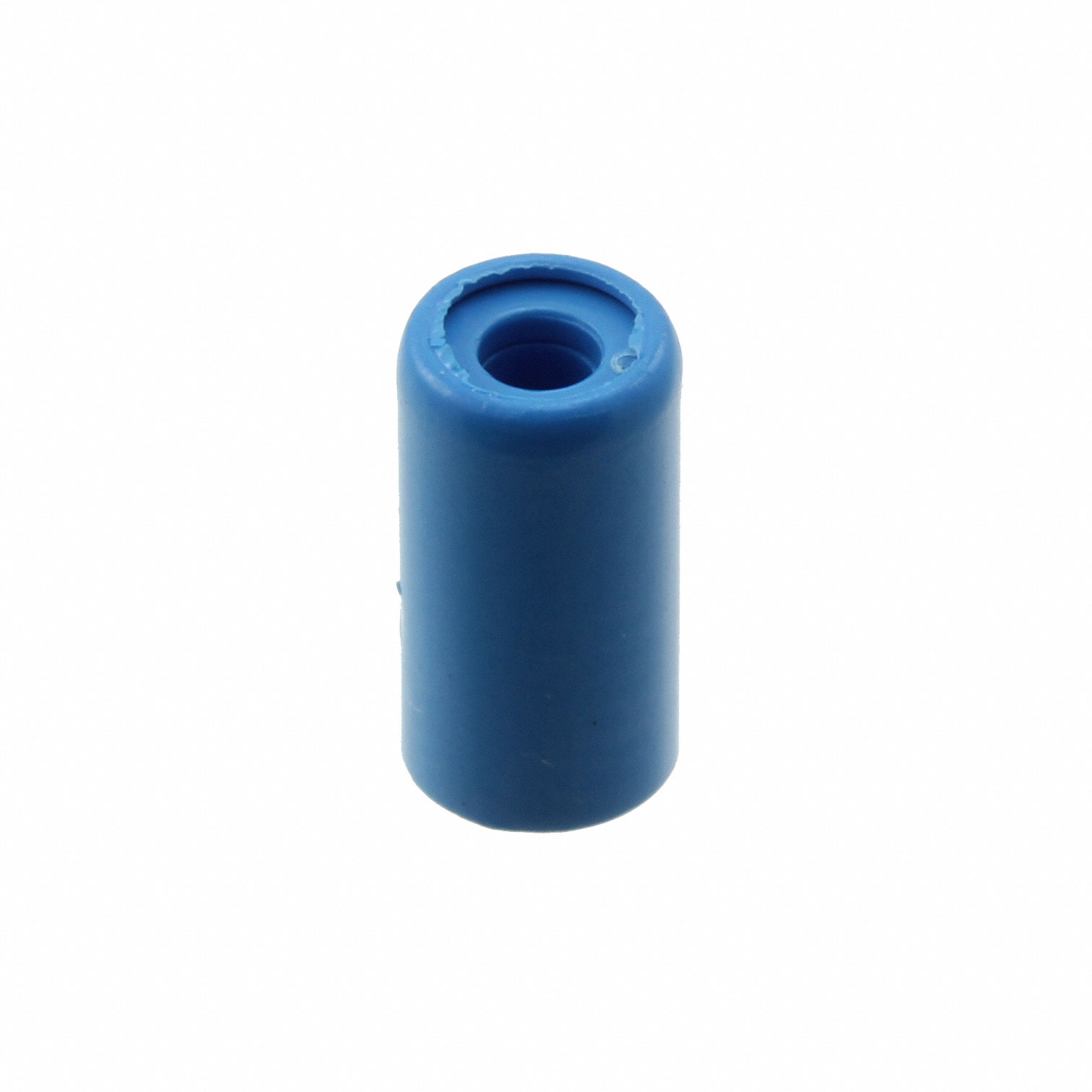

The AB3X2X6W is a solid round cable ferrite core manufactured by Toshiba Semiconductor and Storage. It features a free-hanging design with an inner diameter of 1.50mm (0.059 inches) and an outer diameter of 4.00mm (0.157 inches). The component has a length of 7.50mm (0.295 inches). It is RoHS compliant and classified under EAR99. This passive component is designed for electromagnetic interference suppression on cables.

Feature Summary

• Solid construction for consistent magnetic properties
• Free-hanging mounting style for flexible installation
• Round geometry optimized for cylindrical cable profiles

Applications

• Electromagnetic interference suppression on signal cables
• Noise filtering for data transmission lines
• Cable protection in electronic assemblies

Procurement Notes

Verify the obsolete status of this specific part number before procurement planning. Confirm that the physical dimensions, specifically the 1.50mm inner diameter and 4.00mm outer diameter, match the target cable specifications. Ensure compliance requirements align with project standards, noting the RoHS compliant status.

Selection Notes

Select this component when a solid, non-split ferrite core is required for permanent cable installations. The fixed inner dimension of 1.50mm dictates compatibility with specific wire gauges. Consider the free-hanging form factor for applications where snap-on or split-core alternatives are unsuitable due to space or mechanical constraints.

Part Context

This part belongs to the AB3X2X6 series of cable ferrites from Toshiba Semiconductor and Storage. The 'W' suffix typically denotes specific packaging or compliance variations within the product line. It serves as a passive noise suppression element, distinct from active components or split-core variants found in similar categories.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Due to the obsolete status, alternative solutions must be sourced through distributor channels or engineering change orders using compatible dimensional equivalents.
