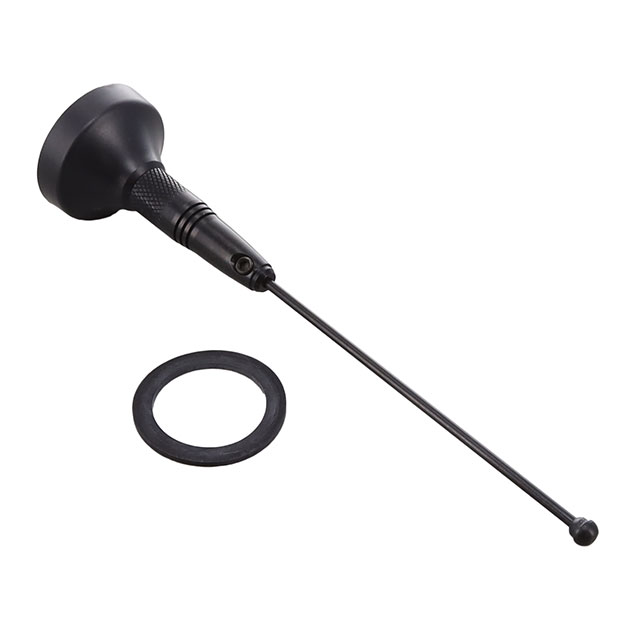

AB450 is listed in the Antennas RF range at ChipApex. The manufacturer field lists TE Connectivity. Its product description is RF ANT 450MHZ WHIP STR NMO BASE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AB450
- Description：RF ANT 450MHZ WHIP STR NMO BASE
- Series：-
- Mfr：TE Connectivity
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：450MHz
- Frequency Range：450MHz ~ 470MHz
- Antenna Type：Whip, Straight
- Number of Bands：1
- VSWR：1.5
- Return Loss：-
- Gain：0dB
- Features：-
- Termination：NMO
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Base Mount
- Height (Max)：-
- Applications：-
- Power - Max：200 W
Antennas RF datasheet and documents for AB450
Antennas RF Overview
The TE Connectivity AB450 is a UHF whip antenna designed for the 450MHz to 470MHz frequency range. It features a straight monopole configuration with a unity gain of 0dB and a maximum power handling capacity of 200W. The antenna utilizes an NMO base mount interface and maintains a Voltage Standing Wave Ratio (VSWR) of 1.5. Constructed as a rugged 1/4 wave element, it is suitable for public safety and industrial applications requiring reliable RF transmission in the specified band.
Antennas RF Feature Summary
- Straight whip design with NMO base mounting
- Operates within the 450-470 MHz UHF band
- Supports up to 200W maximum power input
Antennas RF Applications
- Public Safety Land Mobile Radio (LMR)
- Industrial, Scientific, and Medical (ISM) communications
- Long Term Evolution (LTE) data links
Antennas RF Procurement Notes
Verify the specific datasheet version when procuring, as manufacturing location changes may occur. Confirm that the NMO base mount requirement aligns with existing vehicle or equipment infrastructure. Ensure the operating environment supports the specified 200W power rating and UHF frequency range without interference from other systems.
Antennas RF Selection Notes
Select this model for fixed-mount installations requiring NMO compatibility in the 450-470 MHz spectrum. Consider the 0dB gain profile for general coverage needs rather than long-range directional applications. Verify that the 1.5 VSWR specification meets system impedance requirements for optimal signal transfer efficiency.
Antennas RF Part Context
This component belongs to the TE Connectivity AB series of UHF antennas. It serves as a standard solution for mobile radio installations where robust construction and straightforward NMO mounting are required. The unit is distinct from higher-gain variants or different frequency bands within the broader product catalog.
Antennas RF Replacement Considerations
The AB150/450C is a documented related variant within the same product family. Verify mechanical fitment and electrical specifications before substitution, as differences in gain or physical dimensions may exist between models.
