AB4512B1058

Overview

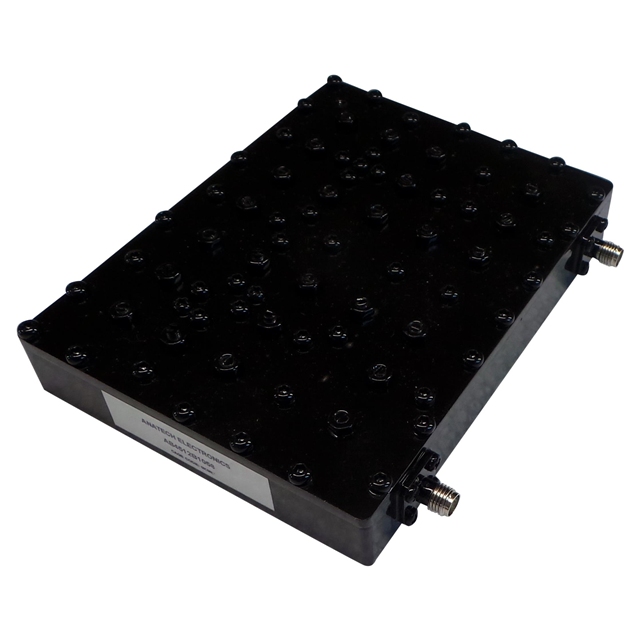

The AB4512B1058 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates with a center frequency of 4512 MHz and provides a passband range from 4400 to 4625 MHz, resulting in a bandwidth of 225 MHz. The component features SMA connectors and maintains a maximum insertion loss of 1.0 dB within the passband. Minimum return loss is specified at 15 dB. The unit is RoHS3 compliant.

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface
• RoHS3 compliance

Applications

• Radio frequency signal filtering
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for detailed rejection specifications and mechanical dimensions before integration. Confirm that the SMA connector type matches the system requirements. Ensure environmental conditions align with the manufacturer's operational limits. Check for any specific handling instructions regarding the cavity structure.

Selection Notes

Select this component when a fixed center frequency of 4512 MHz is required with a 225 MHz bandwidth. The low insertion loss specification makes it suitable for sensitive RF chains. Verify compatibility with existing SMA interfaces. Consider the physical size constraints associated with cavity filters compared to planar alternatives.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity bandpass filter series, which typically offers high power handling and stability. The company focuses on design and manufacturing of such components for industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult the manufacturer directly for equivalent models or cross-reference options based on specific electrical and mechanical requirements.
