AB4700B1196

Overview

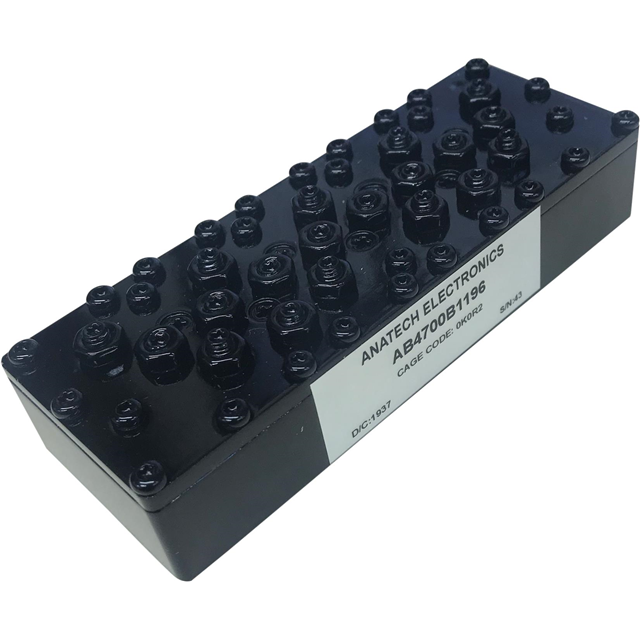

The AB4700B1196 is a cavity bandpass RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 4.7 GHz and provides a bandwidth ranging from 4380 MHz to 5020 MHz. The component features SMA connectors for interface connectivity and is designed for chassis mounting. It specifies an insertion loss of 1 dB, ensuring efficient signal transmission within its designated frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 4.7 GHz
• SMA connector interfaces for standard integration

Applications

• RF signal conditioning in communication systems
• Microwave frequency selection modules
• Chassis-mounted RF filter assemblies

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and connector orientation prior to procurement. Ensure compatibility with existing chassis mounting hardware. Confirm that the 1 dB insertion loss specification meets system requirements. Validate the SMA connector gender and mating specifications against the host equipment interface.

Selection Notes

Select this component when a fixed 4.7 GHz center frequency with 640 MHz bandwidth is required. Consider the chassis mount form factor for permanent installations. Evaluate the 1 dB insertion loss against system noise budget constraints. Verify that the cavity construction aligns with environmental stability needs compared to planar alternatives.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including cavity designs. This model belongs to their bandpass filter portfolio, targeting applications requiring precise frequency selection in the C-band or similar microwave ranges. The company focuses on custom and standard RF components for industrial and commercial use.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires matching the 4.7 GHz center frequency, 4380-5020 MHz bandwidth, SMA connectors, and chassis mount style. Consult manufacturer engineering support for equivalent cavity filter solutions.
