Product Detailed Parameters
- Description：RF FILTER BAND PASS 4.81GHZ MOD
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：4.81GHz Center
- Bandwidth：50MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1.7dB
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Size / Dimension：3.020" L x 2.090" W (76.71mm x 53.09mm)
- Height (Max)：1.090" (27.68mm)
Download product information
Overview

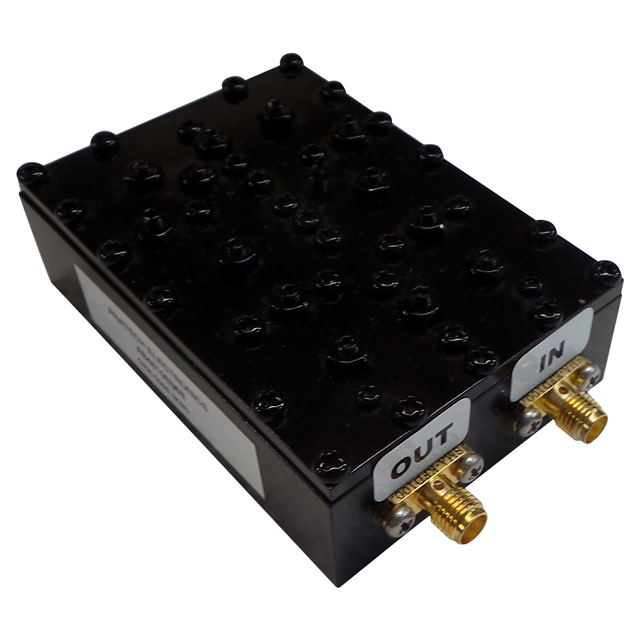

The AB4810B968 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 4.81 GHz with a bandwidth of 50 MHz and an insertion loss of 1.7 dB. The component features SMA connectors and is designed for chassis mounting.
Feature Summary
- Cavity construction for stable RF performance
- Band pass filtering capability
- Chassis mount design
Applications
- RF signal processing systems
- Microwave communication equipment
- Test and measurement instrumentation
Procurement Notes
Verify the specific datasheet AB4810B968.pdf for detailed electrical specifications and mechanical drawings. Confirm connector type and mounting requirements match system constraints before procurement.
Selection Notes
Select this component when a fixed 4.81 GHz center frequency with 50 MHz bandwidth is required. Ensure compatibility with SMA interfaces and chassis mounting infrastructure in the target application environment.
Part Context
Anatech Electronics Inc. specializes in RF and microwave filters. This model belongs to their cavity filter series, designed for high-performance applications requiring precise frequency selection and low insertion loss characteristics.
Replacement Considerations
No public substitute part numbers are confirmed for this specific model.
