AB4925B1241

Overview

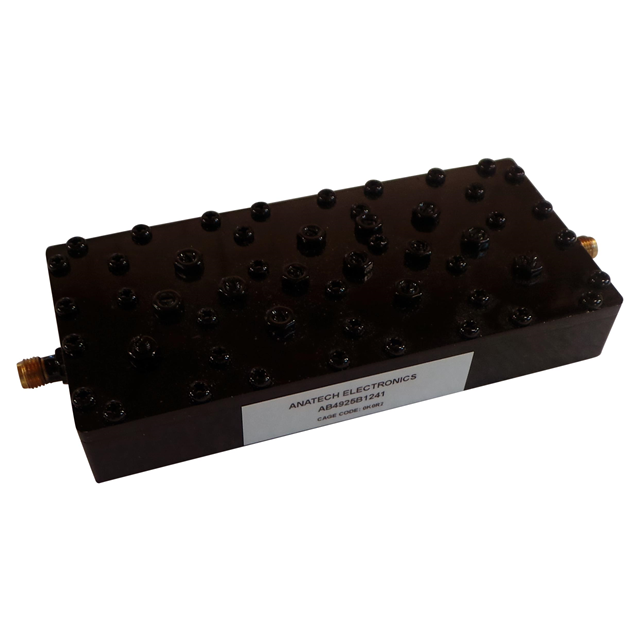

The AB4925B1241 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 4925 MHz and provides an 80 MHz bandwidth, covering the range from 4885 to 4965 MHz. The component features an insertion loss of less than or equal to 1.0 dB and a return loss greater than or equal to 14 dB. It utilizes SMA connectors for interface connections.

Feature Summary

• Cavity construction designed for high-performance radio frequency filtering applications
• SMA connector interface for standard RF system integration
• RoHS3 compliant manufacturing status

Applications

• Radio frequency signal processing systems
• Microwave communication equipment requiring precise frequency selection
• Military and commercial RF filter implementations

Procurement Notes

Verify the specific datasheet version and RoHS3 compliance status directly with Anatech Electronics Inc. prior to procurement. Confirm that the SMA connector type matches your system requirements. Ensure the operating environment aligns with the specified electrical parameters for optimal performance.

Selection Notes

Select this component when a narrow 80 MHz bandwidth centered at 4925 MHz is required. The low insertion loss and high return loss make it suitable for sensitive RF chains. Verify compatibility with existing SMA interfaces and ensure the cavity package fits within the designated mechanical constraints of the assembly.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of standard and custom radio frequency filters for military and commercial sectors. This company holds ISO 9001:2015 certification and focuses on providing precision RF and microwave solutions, including cavity filters like the AB4925B1241.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
