AB4940B525

Overview

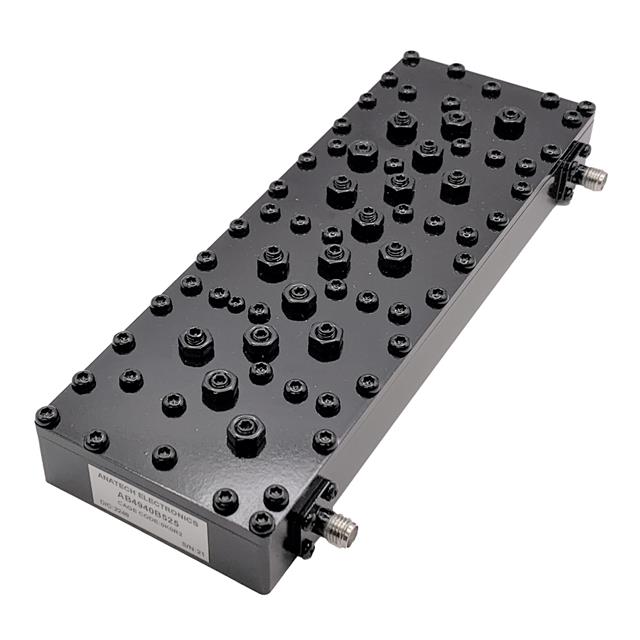

The AB4940B525 is a cavity band pass filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 4940 MHz with a bandwidth of 20 MHz. The component features an insertion loss of 0.8 dB and utilizes SMA connectors within a module package.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering characteristic
• SMA connector interface

Applications

• Radio frequency signal processing
• Communication system filtering
• RF test equipment

Procurement Notes

Verify the specific part number AB4940B525 against official manufacturer documentation to ensure compatibility with your system requirements. Confirm that the SMA connector type and cavity construction meet your design specifications before procurement.

Selection Notes

Select this component when a 4940 MHz center frequency and 20 MHz bandwidth are required. Ensure the 0.8 dB insertion loss meets system budget constraints. Verify that the module package and SMA connectors fit the physical layout.

Part Context

This component belongs to the Anatech Electronics Inc. RF filter series, specifically designed as a cavity band pass filter. It is engineered for applications requiring precise frequency selection in the microwave range.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult the manufacturer for direct equivalents if availability is an issue.
