AB4X2X4.5W

Overview

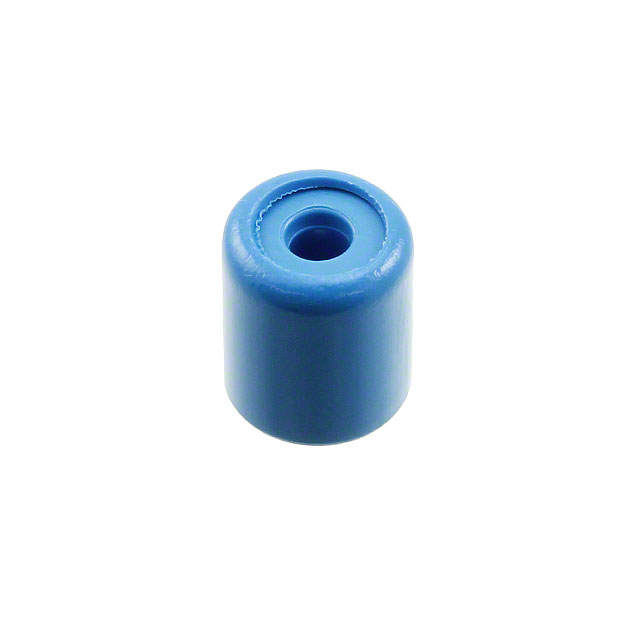

The AB4X2X4.5W is a solid ferrite core manufactured by Toshiba Semiconductor and Storage, designed for free-hanging cable and wire applications to reduce electromagnetic interference. It features a round design with a solid construction. The component has an inner diameter of 1.50 mm (0.059 inches), an outer diameter of 5.00 mm (0.197 inches), and a length of 6.00 mm (0.236 inches).

Feature Summary

• Solid ferrite core construction for durability in free-hanging applications.
• Designed to suppress electromagnetic interference on cables and wires.
• Round shape facilitates easy installation around conductors.

Applications

• Electromagnetic interference suppression on free-hanging cables.
• Wire harness noise reduction in electronic assemblies.
• Signal integrity enhancement in data transmission lines.

Procurement Notes

Verify the part number AB4X2X4.5W against official Toshiba Semiconductor and Storage documentation to confirm specifications. Ensure compatibility with cable diameters matching the 1.50 mm inner diameter. Check for RoHS compliance status if required by your manufacturing standards. Confirm availability through authorized distributors as stock levels may vary.

Selection Notes

Select this component when a solid, free-hanging ferrite core is needed for EMI suppression. Ensure the target cable or wire fits within the 1.50 mm inner diameter. Consider the physical dimensions (5.00 mm OD, 6.00 mm length) for space constraints in the assembly. Verify that the material properties meet the required frequency range for noise reduction.

Part Context

This part belongs to the Amobeads series from Toshiba Semiconductor and Storage. It is categorized under cable ferrites and is used for passive noise suppression. The product is identified as obsolete in some listings, indicating potential end-of-life status. It serves as a passive component in electronic circuits to mitigate high-frequency noise.

Replacement Considerations

Check for direct substitutes with identical dimensions (ID 1.5mm, OD 5.0mm, Length 6.0mm) and magnetic properties. Verify material composition and frequency response characteristics match the original requirements. Consult Toshiba Semiconductor and Storage for recommended alternatives if available.
