AB4X2X6W

Overview

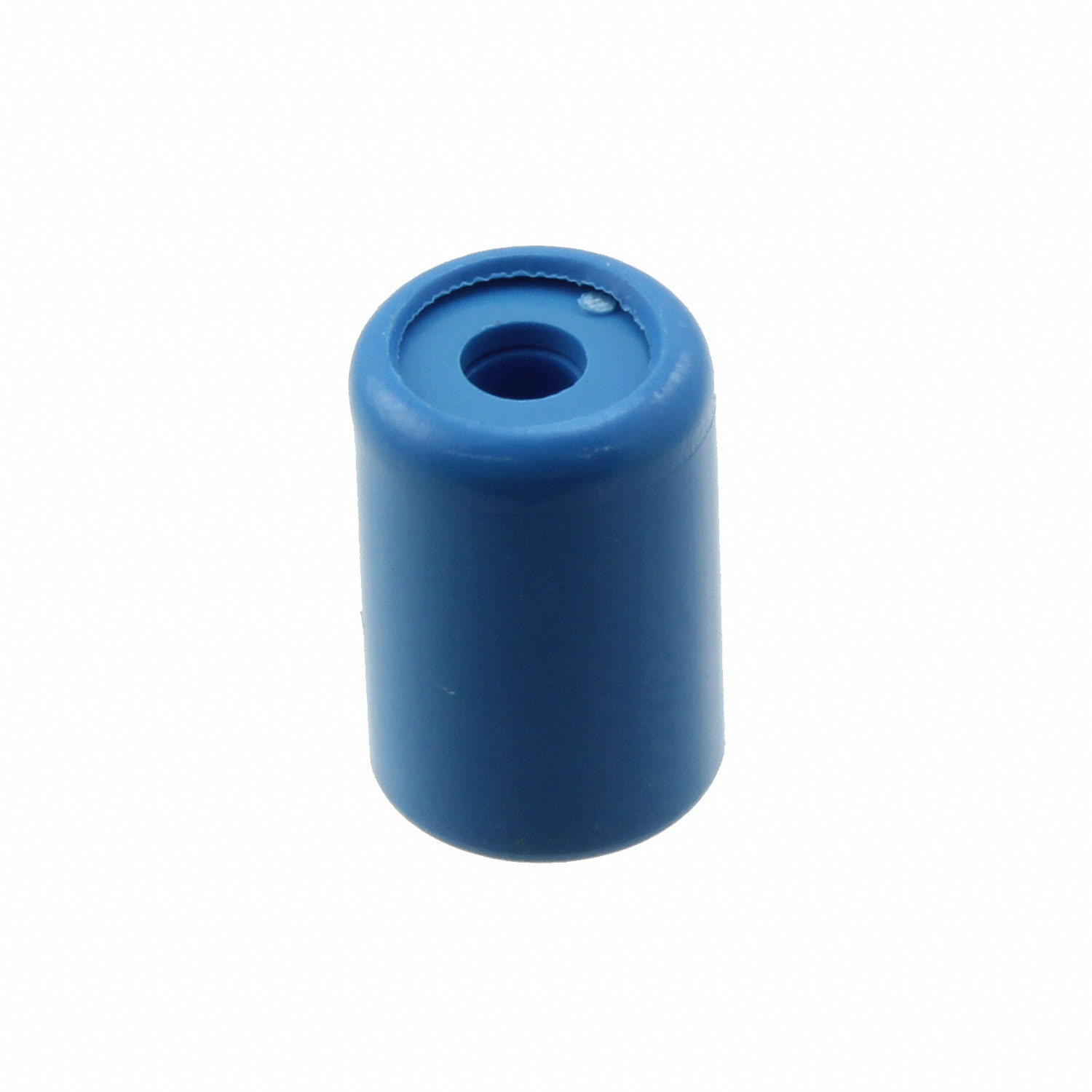

The AB4X2X6W is a solid free-hanging ferrite core manufactured by Toshiba Semiconductor and Storage. It functions as an IC noise filter designed to suppress electromagnetic interference in electronic circuits. The component features a blue color and specific physical dimensions: an inner diameter of 1.50mm, an outer diameter of 5.00mm, and a length of 7.50mm. It is categorized under passive components and common mode chokes.

Feature Summary

• Solid construction for durable noise suppression
• Free-hanging mounting style for flexible installation
• Designed for high-power module applications

Applications

• Electronic components assembly
• Industrial automation systems
• Process automation equipment

Procurement Notes

Verify the exact part number AB4X2X6W with the manufacturer or authorized distributor before ordering. Confirm that the physical dimensions (1.50mm ID, 5.00mm OD, 7.50mm length) match your design requirements. Ensure the supplier is an authorized source for Toshiba Semiconductor and Storage products to guarantee authenticity and quality.

Selection Notes

Select this component when a solid ferrite core is required for noise filtering in industrial or process automation contexts. Consider the free-hanging mounting style if space constraints prevent surface-mount or through-hole integration. Verify compatibility with the cable or wire diameter intended for insertion through the 1.50mm inner diameter.

Part Context

This ferrite core belongs to Toshiba's range of passive components and inductors. It serves as a common mode choke to mitigate electromagnetic interference. The product line supports various electronic assemblies where reliable noise suppression is critical for system stability and compliance with electromagnetic compatibility standards.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Consult Toshiba Semiconductor and Storage directly for potential alternatives or cross-reference options based on identical dimensional and functional specifications.
