AB5200B739

Overview

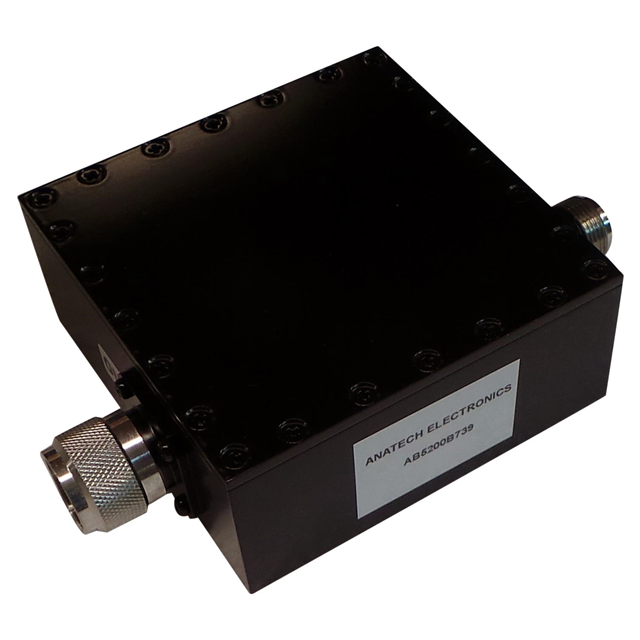

The AB5200B739 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 5200 MHz and provides a bandwidth of 40 MHz. The module exhibits an insertion loss of 1.7 dB. It utilizes SMA connectors for interface connections.

Feature Summary

• Designed as a cavity bandpass filter for radio frequency applications
• Utilizes SMA connector interfaces for signal transmission

Applications

• Radio frequency signal filtering
• Communication systems requiring specific frequency selection

Procurement Notes

Verify the exact part number AB5200B739 against official Anatech Electronics Inc. documentation to ensure compatibility. Confirm that the SMA connector type and 5200 MHz center frequency specifications align with your system requirements before procurement.

Selection Notes

Select this component when a 5200 MHz center frequency with 40 MHz bandwidth is required. Ensure the system supports SMA connectors and can accommodate the specified 1.7 dB insertion loss characteristics within the design constraints.

Part Context

This component belongs to the Anatech Electronics Inc. portfolio of RF and microwave filters. The manufacturer specializes in designing and producing various filter types, including bandpass, low pass, and high pass configurations for specialized electronic applications.

Replacement Considerations

No publicly confirmed substitute part numbers are available for this specific model. Consult Anatech Electronics Inc. directly for potential alternatives or custom design options if this part is unavailable.
