AB542B1314

Overview

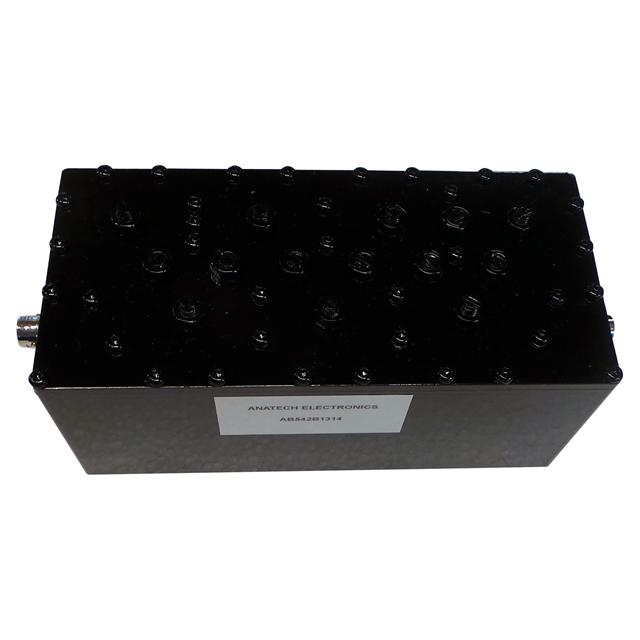

The AB542B1314 is a cavity bandpass filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 542 MHz and provides a bandwidth of 52 MHz. The module exhibits an insertion loss of 1 dB. Designed for radio frequency applications, this component ensures signal integrity within its specified passband while rejecting out-of-band frequencies.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 542 MHz
• Low insertion loss design

Applications

• Radio frequency signal processing
• Communication system filtering
• RF front-end modules

Procurement Notes

Verify the manufacturer part number AB542B1314 against official Anatech Electronics Inc. documentation to confirm specifications. Ensure compatibility with system requirements regarding center frequency and bandwidth. Check for any specific handling or mounting instructions provided in the datasheet before integration.

Selection Notes

Select this component when a fixed 542 MHz center frequency with 52 MHz bandwidth is required. Consider the 1 dB insertion loss specification for link budget calculations. Verify that the cavity package type meets the physical constraints of the intended assembly environment.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. The AB542B1314 belongs to their standard cavity filter lineup, designed for reliable performance in demanding radio frequency environments. This model represents a specific frequency point within their broader portfolio of bandpass solutions.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Consult Anatech Electronics Inc. directly for potential equivalents or custom alternatives if exact replacement is necessary.
