AB5510B563

Overview

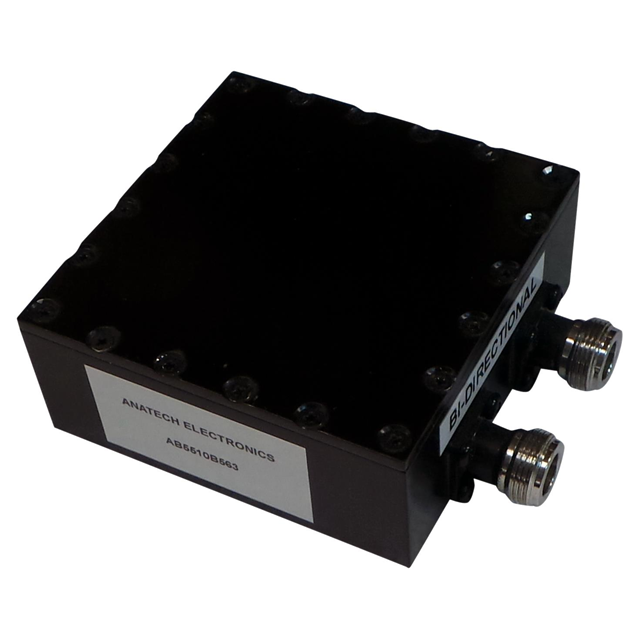

The AB5510B563 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 5.51 GHz and features a bandwidth of 20 MHz. The component exhibits an insertion loss of 1.75 dB. It is constructed as a module designed for radio frequency applications.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 5.51 GHz
• Module form factor

Applications

• Radio frequency signal processing
• Wireless communication systems requiring 5.51 GHz filtering

Procurement Notes

Verify the specific datasheet AB5510B563.pdf for exact electrical tolerances and mechanical dimensions before integration. Confirm connector types and mounting requirements against system specifications to ensure compatibility. Cross-reference part numbers with official Anatech Electronics documentation to avoid substitution errors.

Selection Notes

Select this component when a 5.51 GHz center frequency and 20 MHz bandwidth are required. Consider the 1.75 dB insertion loss in link budget calculations. Ensure physical space accommodates the module dimensions. Verify that the cavity technology aligns with environmental and thermal management needs.

Part Context

Anatech Electronics Inc. specializes in RF filters, including cavity bandpass designs. This model belongs to their line of radio frequency components intended for precise frequency selection. The company focuses on design and manufacturing of such specialized electronic parts.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer documentation for approved equivalents or cross-references.
