AB5800B527

Overview

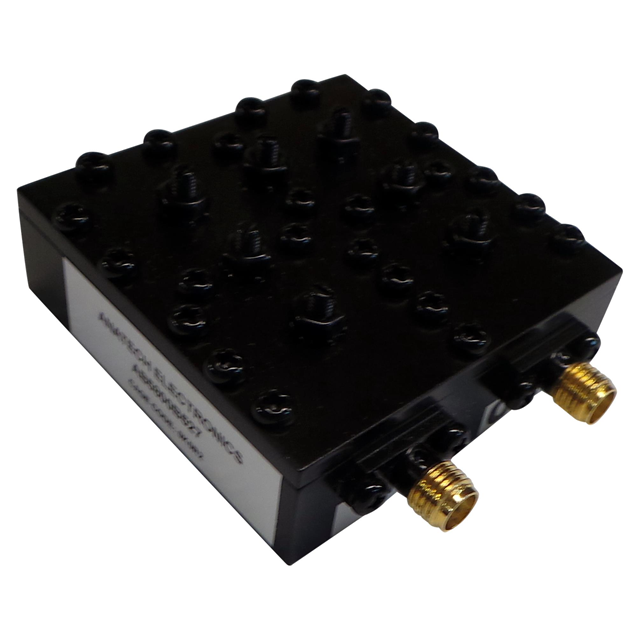

The AB5800B527 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 5.8GHz with a bandwidth of 40MHz and an insertion loss of 1.5dB. The component features SMA connectors and is designed for chassis mounting. Its physical dimensions are 2.000 inches in length and 2.000 inches in width, equivalent to 50.80mm x 50.80mm.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability at 5.8GHz
• SMA connector interface for signal transmission

Applications

• Radio frequency signal processing
• Wireless communication systems requiring 5.8GHz selection
• Chassis-mounted RF filter modules

Procurement Notes

Verify the specific datasheet version (AB5800B527.pdf) for detailed electrical characteristics and mechanical drawings before integration. Confirm that the SMA connector type matches your system requirements. Ensure chassis mounting provisions align with your enclosure design specifications.

Selection Notes

Select this component when a fixed 5.8GHz center frequency with 40MHz bandwidth is required. The 1.5dB insertion loss specification should be evaluated against system link budget constraints. Consider the 50.80mm square footprint for spatial planning within the equipment chassis.

Part Context

Anatech Electronics Inc. produces specialized RF filters using cavity technology. This model belongs to their line of bandpass filters designed for precise frequency selection. The company focuses on high-performance components for industrial and commercial radio applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model. Verify compatibility with existing SMA interfaces if considering alternative manufacturers.
