AB6480B1242

Overview

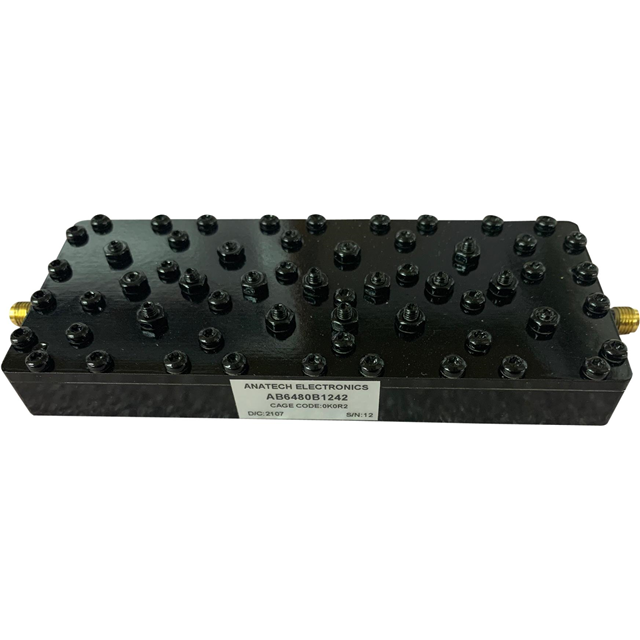

The AB6480B1242 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 6.48 GHz and provides a bandwidth of 130 MHz, covering the 6415-6545 MHz range. The component features SMA connectors and maintains an insertion loss of 1 dB. Designed for radio frequency applications, this module utilizes cavity technology to ensure stable signal filtering performance within its specified operational parameters.

Feature Summary

• Cavity construction for high-performance RF filtering
• SMA connector interface for standard integration
• Band pass functionality centered at 6.48 GHz

Applications

• Radio frequency signal processing
• Microwave communication systems
• Military and commercial RF equipment

Procurement Notes

Verify the specific datasheet version for the AB6480B1242 before procurement. Confirm that the SMA connector type and cavity construction match your system requirements. Ensure compatibility with the 6.48 GHz center frequency and 130 MHz bandwidth specifications. Check for any environmental operating limits if deployed in extreme conditions. Validate supplier authorization from Anatech Electronics Inc. to guarantee component authenticity.

Selection Notes

Select the AB6480B1242 when a fixed 6.48 GHz center frequency is required. The 130 MHz bandwidth suits applications needing precise spectral isolation. Cavity design offers stability compared to planar alternatives. Verify that SMA connectors align with existing board layouts. Consider thermal management if operating near the upper temperature limits defined in the official documentation.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. The AB6480B1242 belongs to their cavity band pass filter series. This product line emphasizes reliability and precision in radio frequency environments. The manufacturer focuses on both standard and custom filter designs.

Replacement Considerations

No public confirmed substitute part numbers are available for the AB6480B1242. Custom cavity filters often lack direct cross-references due to unique tuning. Consult Anatech Electronics Inc. directly for potential equivalent models or custom replacements.
