Product Detailed Parameters
- Description：RF FILTER BANDPASS 722MHZ MODULE
- Series：-
- Mfr：Anatech Electronics Inc.
- Package：Box
- Frequency：722MHz Center
- Bandwidth：48MHz
- Filter Type：Band Pass
- Ripple：-
- Insertion Loss：1dB
- Mounting Type：Chassis Mount
- Package / Case：Module
- Size / Dimension：5.394" L x 3.071" W (137.00mm x 78.00mm)
- Height (Max)：1.142" (29.00mm)
Download product information
Overview

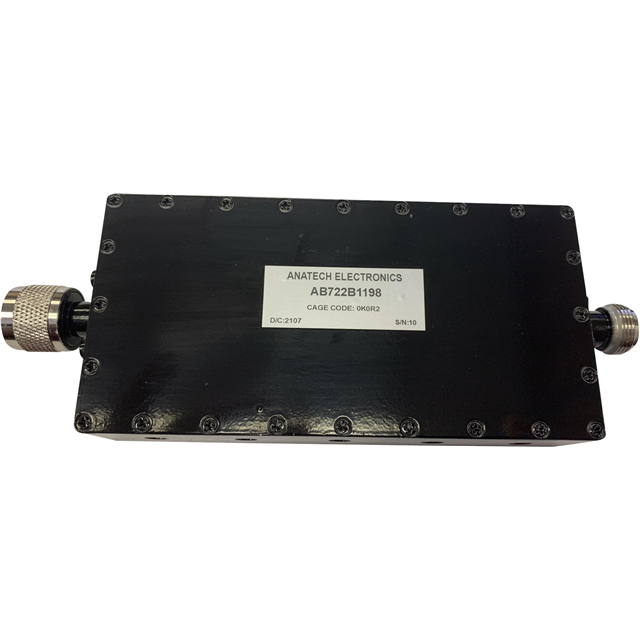

The AB722B1198 is a bandpass RF filter module manufactured by Anatech Electronics Inc. It operates with a center frequency of 722MHz and provides a bandwidth of 48MHz. The component features an insertion loss specification of 1dB. Designed as a radio frequency module, it serves as a specialized filtering solution for signal processing applications requiring precise frequency selection within the specified operational range.
Feature Summary
- Bandpass filtering capability centered at 722MHz
- Defined 48MHz operational bandwidth
- Low insertion loss characteristic of 1dB
- Module form factor for integration
Applications
- Radio frequency signal processing
- Communication system filtering
- Aerospace electronic subsystems
- Defense equipment signal conditioning
Procurement Notes
Verify part authenticity through authorized Anatech Electronics Inc. distributors or direct manufacturer channels. Confirm that the received module matches the AB722B1198 designation and specifications. Request official datasheets to validate performance parameters against application requirements before procurement finalization.
Selection Notes
Select this component when a fixed 722MHz center frequency with 48MHz bandwidth is required. Ensure the 1dB insertion loss meets system sensitivity constraints. Consider the module package type for mechanical integration into existing RF architectures. Validate environmental ratings if operating in extreme conditions.
Part Context
Anatech Electronics Inc. specializes in designing and manufacturing RF and microwave filters for commercial, aerospace, and defense sectors. The AB722B1198 belongs to their standard and custom filter product line, supporting ISO 9001:2015 certified production processes established since 1990.
Replacement Considerations
No public substitute part numbers are documented for the AB722B1198. Custom RF filters often require specific tuning; consult Anatech Electronics Inc. directly for potential equivalent designs or custom modifications matching these electrical characteristics.
