AB8150B1240

Overview

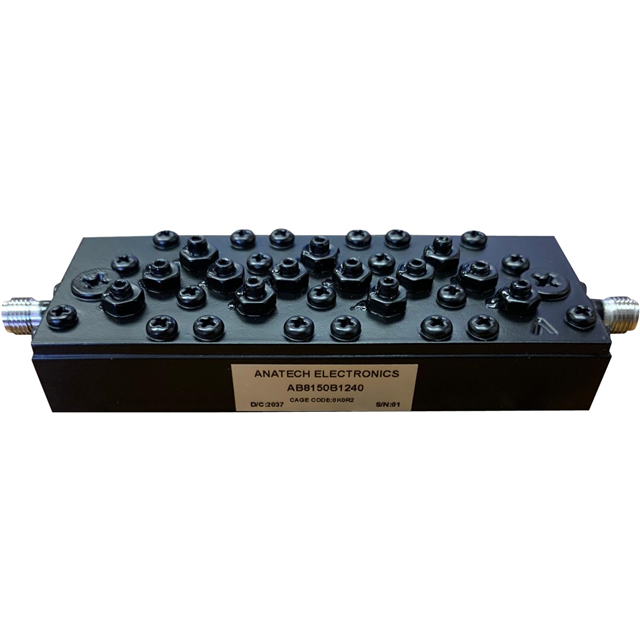

The AB8150B1240 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 8150 MHz and provides a bandwidth of 500 MHz. The component features an insertion loss of 1.5 dB and utilizes SMA connectors for interface connections. Designed as a module, it serves as a specialized radio frequency filtering solution within its specified operational parameters.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at 8150 MHz
• SMA connector interface integration

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and mechanical dimensions before procurement. Ensure compatibility with existing SMA connector interfaces in the target assembly. Confirm RoHS status requirements against project specifications, as documentation indicates this may not be applicable for all variants.

Selection Notes

Select this component when a fixed center frequency of 8150 MHz with 500 MHz bandwidth is required. The 1.5 dB insertion loss specification should align with system power budget constraints. Verify that the SMA connector type matches the board layout and cable assemblies used in the design.

Part Context

This part belongs to the Anatech Electronics Inc. RF filters category, specifically designed as a cavity band pass filter. It is distinct from general-purpose filters due to its fixed frequency characteristics and modular form factor intended for direct integration into RF systems requiring precise spectral filtering.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 8150 MHz center frequency, 500 MHz bandwidth, and SMA interface specifications exactly.
