AB829B1038

Overview

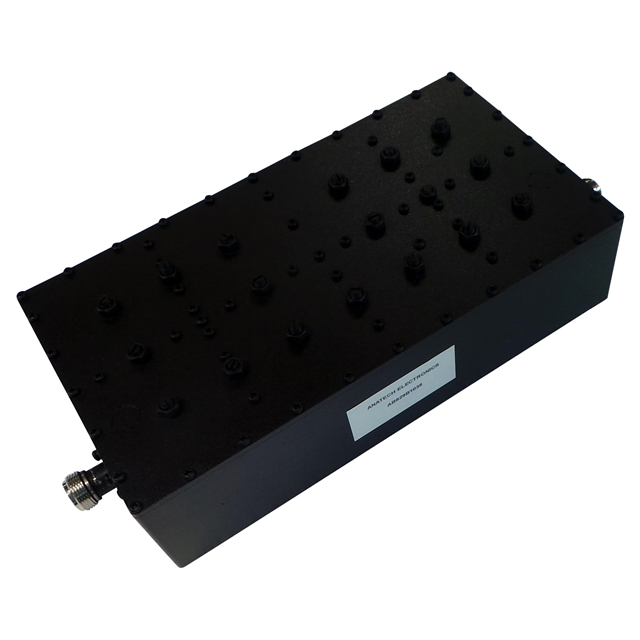

The AB829B1038 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 829 MHz and provides a minimum 3dB bandwidth of 8 MHz. The component features SMA connectors and exhibits an insertion loss of less than 1.5 dB at the center frequency. It achieves a rejection level of 40 dB at 824 MHz. The unit is RoHS3 compliant and has an MSL rating of 1.

Feature Summary

• Cavity construction for stable RF filtering performance
• SMA connector interface for signal transmission
• RoHS3 environmental compliance

Applications

• Radio frequency signal filtering
• Microwave communication systems
• RF module integration

Procurement Notes

Verify the specific part number AB829B1038 against official Anatech Electronics Inc. documentation to confirm electrical specifications and mechanical dimensions. Ensure compatibility with system requirements regarding center frequency, bandwidth, and connector type before procurement. Check for updated datasheets to validate current manufacturing status and compliance certifications.

Selection Notes

Select this component when a fixed center frequency of 829 MHz is required with narrow bandwidth filtering capabilities. Consider the SMA connector interface for system integration needs. Evaluate the insertion loss and rejection specifications against system sensitivity requirements. Confirm physical size constraints as cavity filters typically require specific mounting space.

Part Context

Anatech Electronics Inc. specializes in the design and manufacturing of RF and microwave components. The company holds ISO 9001:2015 certification and produces various filter types including cavity and waveguide designs. This model belongs to their line of discrete RF filters intended for specialized communication applications.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided source material. Verify exact electrical matches if considering alternative manufacturers.
