AB836B1180

Overview

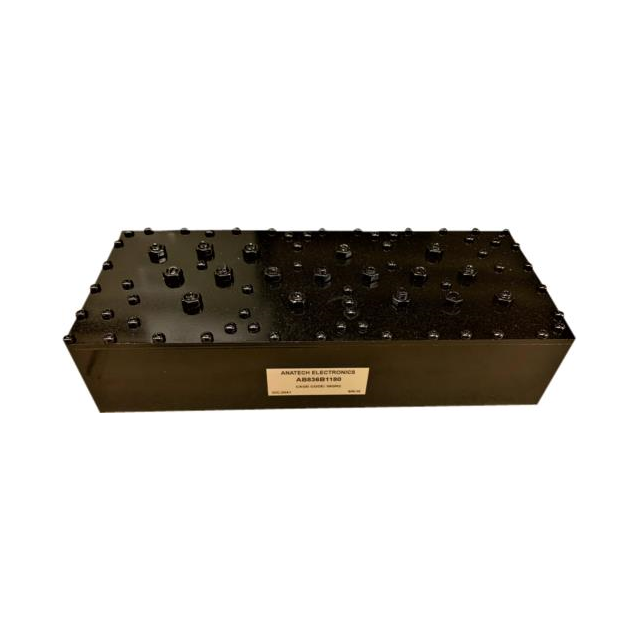

The AB836B1180 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 836.5MHz and provides a bandwidth of 25MHz, covering the 824-849 MHz range. The component features SMA connectors for interface connectivity and is supplied in box packaging. This module is designed for precise radio frequency signal filtering applications requiring specific frequency selection within the defined operational parameters.

Feature Summary

• Cavity construction for stable RF performance
• SMA connector interface for modular integration

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify part number accuracy against official Anatech Electronics Inc. documentation to ensure correct specifications. Confirm connector type and packaging details upon receipt. Cross-reference datasheet AB836B1180.pdf for technical validation before integration into design projects.

Selection Notes

Select this component when a fixed center frequency of 836.5MHz with 25MHz bandwidth is required. Ensure compatibility with SMA interfaces and cavity filter form factors. Validate operational frequency range against system requirements prior to procurement.

Part Context

This model belongs to the Anatech Electronics Inc. RF filter series, specifically designed as a cavity band pass filter. It serves as a specialized component for maintaining signal integrity within defined frequency bands in electronic systems.

Replacement Considerations

AB836B1180-N is listed as a variant with identical specifications.
