AB864B1214

Overview

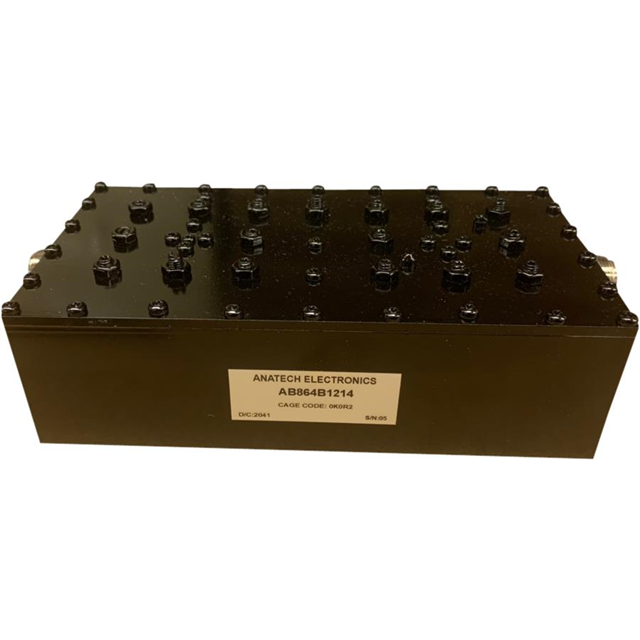

The AB864B1214 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates with a center frequency of 864.5 MHz and provides a bandwidth of 59 MHz, covering the range from 835 MHz to 894 MHz. The component features an insertion loss of 1.5 dB and maintains a voltage standing wave ratio (VSWR) of 1.5:1. Constructed as a module, it utilizes a 50-ohm impedance system suitable for standard RF circuits.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 864.5 MHz
• Module format for integrated circuit implementation

Applications

• Radio frequency signal processing
• Communication systems requiring specific frequency selection
• RF front-end filtering modules

Procurement Notes

Verify the exact datasheet version provided by Anatech Electronics Inc. or authorized distributors to confirm mechanical dimensions and environmental ratings. Ensure compatibility with existing 50-ohm system impedances. Cross-reference the part number against official manufacturer catalogs to distinguish between standard and custom variants, as specifications may vary slightly between production batches.

Selection Notes

Select this component when a fixed center frequency of 864.5 MHz with a 59 MHz bandwidth is required. Consider the 1.5 dB insertion loss and 1.5:1 VSWR specifications for signal integrity requirements. Evaluate the module form factor against available board space. Confirm that the operating temperature range meets the specific environmental conditions of the target application before finalizing the design.

Part Context

Anatech Electronics Inc. specializes in manufacturing standard and custom radio frequency filters for military and commercial sectors. The AB864B1214 belongs to their line of cavity bandpass filters, which are engineered for high-performance RF applications. These components are typically used in scenarios demanding precise frequency control and rejection of out-of-band signals within microwave and RF spectrum ranges.

Replacement Considerations

No public confirmed substitute part numbers are available for the AB864B1214. Users should consult Anatech Electronics Inc. directly for potential equivalent models or custom alternatives that match the 864.5 MHz center frequency and 59 MHz bandwidth specifications.
