AB878B507

Overview

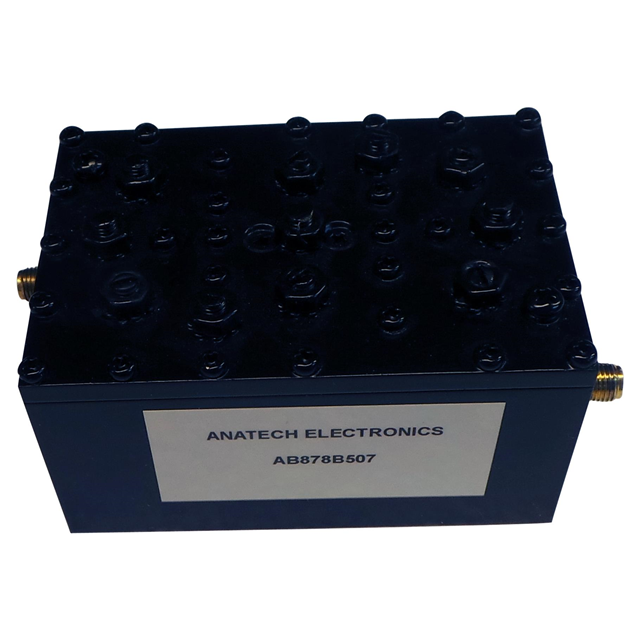

The AB878B507 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for radio frequency applications. It operates with a center frequency of 878 MHz and features a bandwidth of 4 MHz, covering the range from 877 to 879 MHz. The component exhibits an insertion loss of less than 4 dB and utilizes SMA connectors for interface connectivity.

Feature Summary

• Constructed as a cavity bandpass filter for stable RF performance
• Utilizes SMA connectors for reliable signal transmission
• Engineered for specific center frequency operation at 878 MHz

Applications

• Radio frequency signal filtering
• Communication system components
• RF module integration

Procurement Notes

Verify the manufacturer designation as Anatech Electronics Inc. when sourcing this component. Confirm that the SMA connector type matches your system requirements. Ensure the specified 878 MHz center frequency aligns with your design specifications before procurement.

Selection Notes

Select this component when a cavity bandpass filter with an 878 MHz center frequency is required. Consider the 4 MHz bandwidth and less than 4 dB insertion loss characteristics. Verify compatibility with SMA interfaces for proper system integration.

Part Context

This part belongs to the category of cavity bandpass filters operating within the 100 to 1000 MHz range. It is specifically categorized under RF filters and is distinct from other models in the series by its precise 878 MHz center frequency specification.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
