AB912B611

Overview

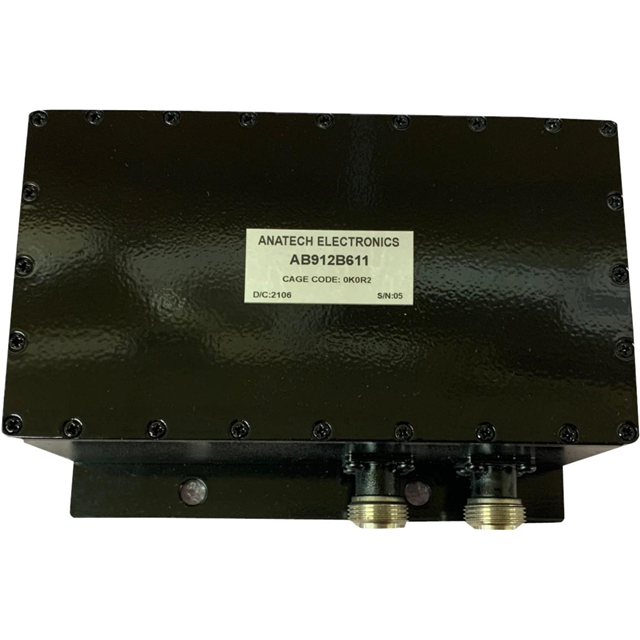

The AB912B611 is a cavity bandpass filter manufactured by Anatech Electronics Inc., designed for RF applications. It operates at a center frequency of 912.5 MHz with a bandwidth of 19 MHz, covering a passband from 903 to 922 MHz. The component features a maximum insertion loss of 1.6 dB and a passband ripple of 1 dB max. It utilizes chassis mounting for secure installation.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering centered at 912.5 MHz
• Chassis mount configuration

Applications

• RF signal processing systems
• Communication equipment requiring specific frequency selection
• Test and measurement instrumentation

Procurement Notes

Verify the exact datasheet specifications directly from Anatech Electronics Inc. before integration. Confirm mechanical dimensions and mounting requirements match your chassis design. Ensure environmental conditions align with the component's operational limits. Cross-reference part numbers to avoid confusion with similar models in the series.

Selection Notes

Select this component when a fixed center frequency of 912.5 MHz is required. Consider the 19 MHz bandwidth for application compatibility. Evaluate the 1.6 dB insertion loss against system power budgets. Verify chassis mounting suitability for the intended enclosure.

Part Context

This part belongs to the Anatech Electronics Inc. RF filters category, specifically cavity bandpass filters. These components are engineered for precise frequency selection in radio frequency environments. The model number indicates specific electrical characteristics defined by the manufacturer.

Replacement Considerations

Consult official substitution lists from Anatech Electronics Inc. for verified equivalents. Generic replacements may not match the 912.5 MHz center frequency or 19 MHz bandwidth. Verify that any substitute maintains the same chassis mounting style and insertion loss specifications.
