AB915B475

Overview

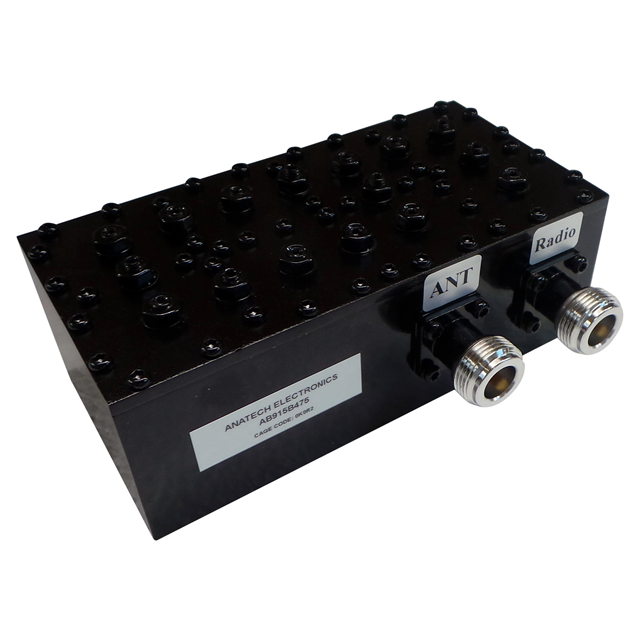

The AB915B475 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 915 MHz and a bandwidth ranging from 26 MHz to 16 MHz, covering the 902-928 MHz range. The component features an insertion loss of 1.5 dB. It is designed as a module for radio frequency applications.

Feature Summary

• Cavity construction for stable RF performance
• Band pass filtering capability at 915 MHz
• RoHS compliant manufacturing

Applications

• Radio frequency signal processing
• Microwave communication systems

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical dimensions before integration. Confirm RoHS compliance status if required by project specifications. Ensure the supplier provides original manufacturer documentation to validate authenticity and technical accuracy for the AB915B475 model.

Selection Notes

Select this component when a cavity band pass filter is required for the 902-928 MHz spectrum. Consider the 1.5 dB insertion loss and 915 MHz center frequency requirements. Verify compatibility with existing RF system impedance and physical mounting constraints within the target application environment.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters, including band pass, low pass, and high pass designs. Founded in 1990, the company focuses on custom and standard filter solutions. The AB915B475 represents their cavity-based filtering technology for specific frequency bands.

FAQ

What is the operating frequency range?

The AB915B475 operates between 902 MHz and 928 MHz.

Is the component environmentally compliant?

Yes, the AB915B475 is lead-free and RoHS compliant.
