AB9300B1323

Overview

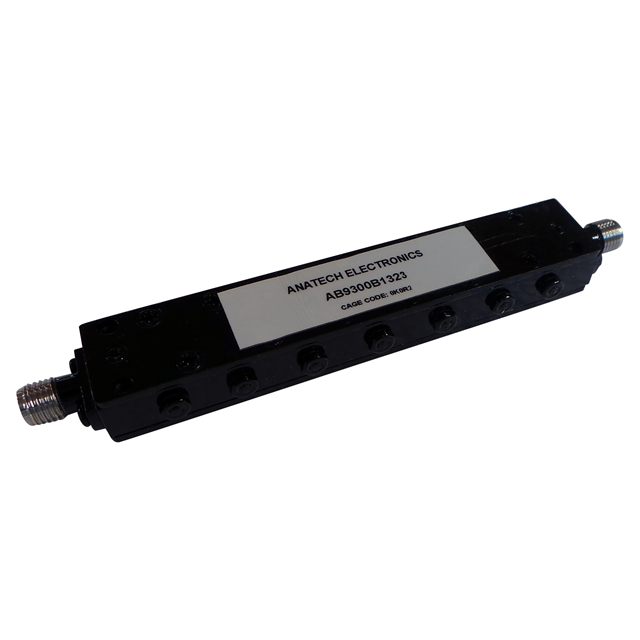

The AB9300B1323 is a cavity bandpass RF filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 9300 MHz with a bandwidth of 2600 MHz, covering an 8000-10600 MHz passband. The component features a maximum insertion loss of 1.0 dB and a return loss of 14 dB. It utilizes SMA connectors for interface.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering capability centered at 9300 MHz
• Connectorized design with SMA interfaces

Applications

• Radio frequency signal processing
• Microwave communication systems
• Military and commercial RF applications

Procurement Notes

Verify the specific connector gender and mating requirements against system schematics. Confirm that the 2600 MHz bandwidth aligns with the intended signal spectrum. Ensure environmental conditions meet the operational limits defined in the official datasheet before finalizing procurement decisions.

Selection Notes

Select this component when a fixed center frequency of 9300 MHz is required. The 1.0 dB maximum insertion loss makes it suitable for low-loss applications. Verify compatibility with existing SMA infrastructure and ensure the physical dimensions fit the designated enclosure space.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters for military and commercial sectors. This model belongs to their standard cavity filter lineup, designed for reliable performance in demanding environments. The company maintains ISO 9001:2015 certification for quality management.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model. Cross-referencing requires matching exact electrical specifications including center frequency, bandwidth, and connector type.

FAQ

What is the passband range of the AB9300B1323?

The 1 dB passband ranges from 8000 MHz to 10600 MHz.

Does this filter use integrated or external connectors?

It is a connectorized module featuring SMA connectors.
