AB935B903

Overview

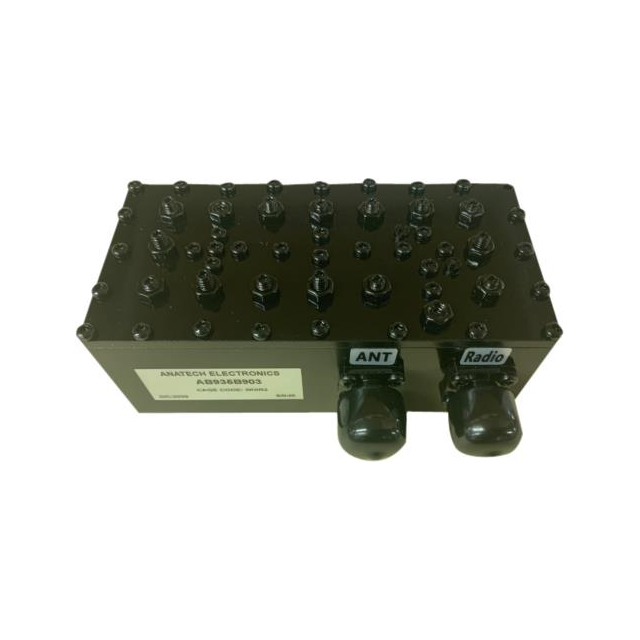

The AB935B903 is a cavity band pass RF filter manufactured by Anatech Electronics Inc. It operates with a center frequency of 935 MHz and provides a bandwidth of 26 MHz. The insertion loss is specified at 1.5 dB. The physical dimensions are 4.724 inches in length by 2.362 inches in width, equivalent to 120.00 mm by 60.00 mm.

Feature Summary

• Cavity construction for high performance RF filtering
• Band pass configuration centered at 935 MHz
• Defined 26 MHz operational bandwidth

Applications

• Radio frequency signal processing
• Communication system filtering
• RF module integration

Procurement Notes

Verify the specific manufacturer datasheet for complete electrical characteristics and mechanical drawings before integration. Confirm that the 935 MHz center frequency and 26 MHz bandwidth align with your system requirements. Ensure the cavity package dimensions fit your enclosure constraints. Check for any specific handling instructions related to RF components.

Selection Notes

Select this component when a fixed 935 MHz center frequency is required. The 26 MHz bandwidth defines the passband range. Consider the 1.5 dB insertion loss impact on signal strength. The cavity form factor dictates mounting space needs. Verify compatibility with existing RF chain impedance levels.

Part Context

Anatech Electronics Inc. produces specialized RF filters. This model belongs to their cavity filter series. These components are designed for stable frequency selection. The brand focuses on radio frequency applications requiring precise filtering capabilities.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer for direct equivalents or cross-reference lists if alternative sourcing is necessary.
