AB950B1082

Overview

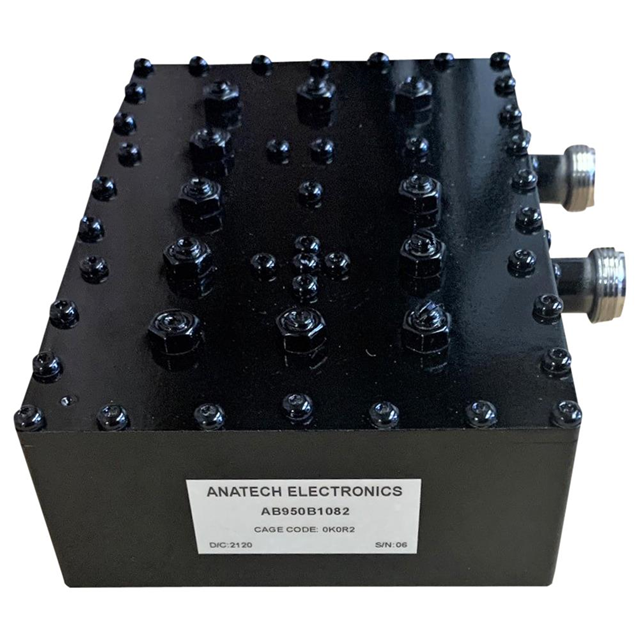

The AB950B1082 is a cavity bandpass filter manufactured by Anatech Electronics Inc. It operates at a center frequency of 950 MHz with a passband ranging from 940 to 960 MHz. The component features a maximum passband insertion loss of 0.7 dB and a minimum passband return loss of 18 dB. Designed for RF applications, it provides precise signal filtering within the specified frequency range.

Feature Summary

• Cavity construction for stable RF performance
• Bandpass filtering centered at 950 MHz
• Low insertion loss characteristics
• High return loss capability

Applications

• RF signal conditioning
• Microwave communication systems
• Test and measurement equipment

Procurement Notes

Verify the specific datasheet version for the AB950B1082 to confirm mechanical dimensions and connector types. Ensure compatibility with system impedance requirements before integration. Cross-reference official Anatech Electronics documentation for any recent design changes or updates to electrical specifications.

Selection Notes

Select this component when a narrow bandpass filter around 950 MHz is required. Consider the 940-960 MHz passband width for application bandwidth needs. Evaluate the 0.7 dB insertion loss limit against system power budget constraints. Verify that the cavity package style fits the available physical space in the assembly.

Part Context

Anatech Electronics Inc. specializes in RF and microwave filters. This part belongs to their cavity filter series, designed for high-performance applications requiring precise frequency selection. The company focuses on custom and standard RF solutions for various industries.

Replacement Considerations

Consult official Anatech Electronics documentation for verified substitute part numbers. Do not assume generic replacements match the 950 MHz center frequency or 940-960 MHz passband without explicit confirmation.
