ABAR1504-S2450-REV B

Antennas RF Overview

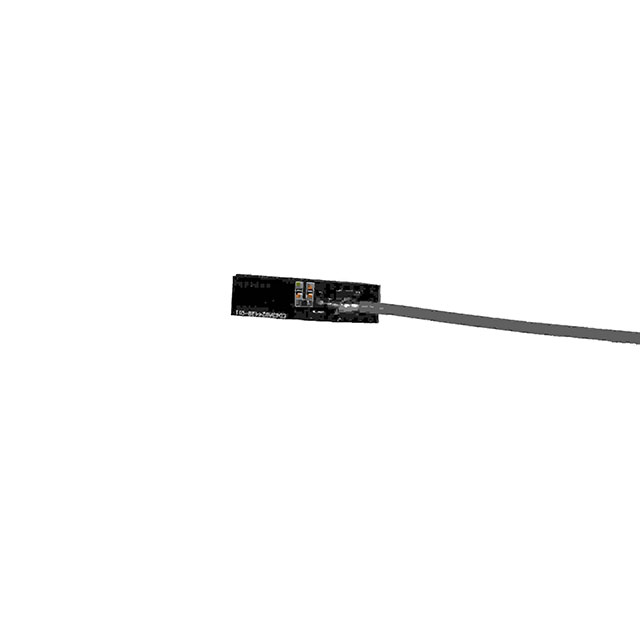

The ABAR1504-S2450-REV B is a compact passive PCB antenna manufactured by Abracon LLC, designed for 2.4 GHz wireless protocols including Bluetooth, Wi-Fi, and Zigbee. It features an FR4 substrate with dimensions of 15 mm x 4 mm x 0.8 mm. The component utilizes a flexible adhesive mount and connects via an I-PEX (F) connector interface.

Antennas RF Feature Summary

• Low profile design measuring 0.8 mm in height
• Flexible adhesive mounting method for secure integration
• I-PEX (F) connector termination interface

Antennas RF Applications

• Internet of Things (IoT) devices
• Wearable electronics
• Home automation systems

Antennas RF Procurement Notes

Verify the specific revision suffix REV B against the manufacturer's latest documentation to ensure compatibility with current production standards. Confirm that the I-PEX connector type matches the system requirements. Check RoHS compliance status as indicated in official datasheets before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when space constraints require a minimal footprint antenna solution. The low profile and flexible adhesive mount facilitate integration into tight enclosures. Ensure the host device supports the required 2.4 GHz frequency range for optimal performance across Bluetooth, Wi-Fi, and Zigbee applications.

Antennas RF Part Context

This part belongs to Abracon's series of compact 2.4 GHz antennas. It serves as a specialized RF component for wireless communication modules. The design prioritizes size reduction while maintaining signal integrity for short-range wireless protocols commonly used in consumer electronics and IoT networks.

Antennas RF Replacement Considerations

Consult official substitution lists for verified alternatives. Generic replacements may differ in connector type or physical dimensions. Verify electrical specifications match the original design requirements before implementing any substitute components.
