ABB1102L-0100I

Antennas RF Overview

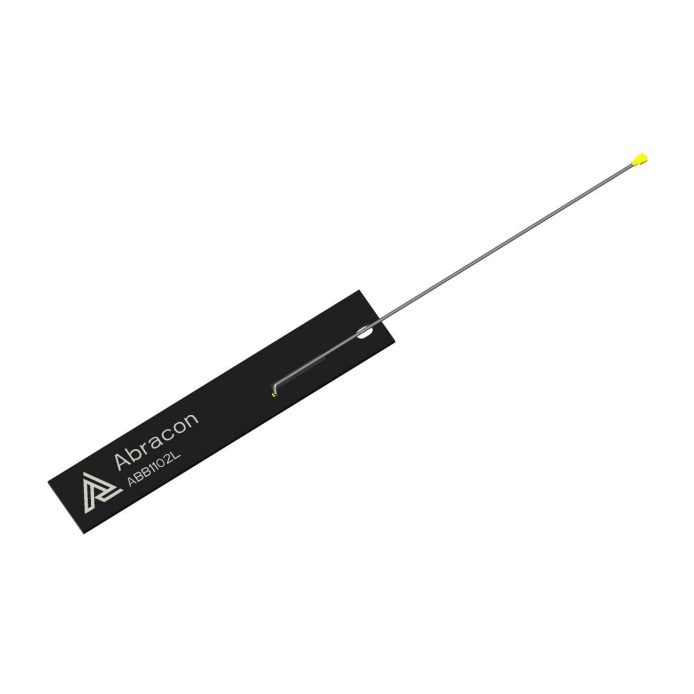

The ABB1102L-0100I is a wideband cellular PCB antenna manufactured by Abracon LLC. It operates within a frequency range of 600 MHz to 6 GHz, supporting GSM, LTE, 2G, 3G, 4G, and 5G standards. The component features a 100 mm cable length utilizing 1.13 mm coaxial cable terminated with an IPEX-1 connector. It provides a gain of 4 dBi and maintains greater than 50% efficiency across all 4G and CBRS bands. The design is linearly polarized and ground plane independent.

Antennas RF Feature Summary

• Supports wideband cellular standards including 5G, 4G, LTE, and legacy 2G/3G networks
• Ground plane independent design allows flexible integration into various device enclosures
• Maintains high radiation efficiency exceeding 50% for 4G and CBRS frequency bands

Antennas RF Applications

• 5G mobile communication devices
• LTE cellular modules
• CBRS (Citizens Broadband Radio Service) equipment
• IoT gateways requiring wideband connectivity

Antennas RF Procurement Notes

Verify the specific revision and manufacturing date code upon order confirmation. Ensure compatibility with the host device's RF interface requirements. Confirm that the 100 mm cable length and IPEX-1 connector type meet the mechanical constraints of the final assembly. Check for any regional regulatory certifications required for deployment.

Antennas RF Selection Notes

Select this model when a ground-plane-independent solution is required for compact cellular designs. The wide frequency coverage from 600 MHz to 6 GHz makes it suitable for multi-standard applications. Consider the 4 dBi gain and >50% efficiency metrics for performance-critical links. The integrated 100 mm cable simplifies routing in constrained spaces compared to direct-mount variants.

Antennas RF Part Context

This component belongs to Abracon's ABB series of wideband cellular antennas. The series is designed to address the increasing complexity of modern wireless protocols by covering multiple bands in a single unit. The ABB1102L-0100I variant specifically targets global cellular deployments requiring support for both sub-6 GHz 5G and traditional LTE frequencies.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Abracon technical support for equivalent models with similar form factors or electrical characteristics if this specific item is unavailable.
