ABLS-13.000MHZ-K4T

$0.23

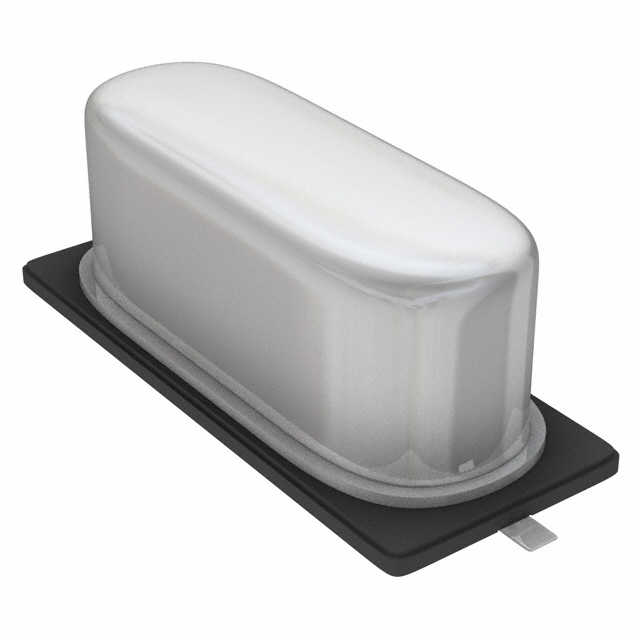

Description：CRYSTAL 13.0000MHZ 18PF SMD
Series：ABLS
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c9616f2b8ee0 Category: Crystals Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ABLS-13.000MHZ-K4T is listed in the Crystals range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is CRYSTAL 13.0000MHZ 18PF SMD. Review the specifications below when checking this part for your BOM.

Crystals specifications for ABLS-13.000MHZ-K4T

Description：CRYSTAL 13.0000MHZ 18PF SMD
Series：ABLS
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：MHz Crystal
Frequency：13 MHz
Frequency Stability：±50ppm
Frequency Tolerance：±30ppm
Load Capacitance：18pF
ESR (Equivalent Series Resistance)：50 Ohms
Operating Mode：Fundamental
Operating Temperature：-40°C ~ 125°C
Ratings：-
Mounting Type：Surface Mount
Package / Case：HC-49/US
Supplier Device Package：HC-49/US
Size / Dimension：0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max)：0.165" (4.20mm)

Crystals datasheet and documents for ABLS-13.000MHZ-K4T

ABLS-13.000MHZ-K4T

Crystals Overview

The ABLS-13.000MHZ-K4T is a low-profile crystal oscillator manufactured by Abracon LLC, operating at a nominal frequency of 13 MHz. It features an equivalent series resistance (ESR) of 50 Ohms and a load capacitance of 18 pF. The component exhibits a frequency tolerance of ±30 ppm and a stability of ±50 ppm. Designed for surface mount technology (SMD/SMT), it operates within a temperature range of -40°C to +125°C. The physical dimensions are 11.4 mm in length, 4.7 mm in width, and 4.2 mm in height, conforming to the HC-49/US package style.

Crystals Feature Summary

Low-profile design suitable for space-constrained applications
Wide operating temperature range for industrial environments
Surface mount installation for automated assembly

Crystals Applications

Computers
Modems
Microcontrollers (MCUs)
Automotive systems
Industrial equipment

Crystals Procurement Notes

Verify that the specific part number matches the required frequency and tolerance specifications before procurement. Confirm compliance with RoHS directives and REACH regulations as indicated in official documentation. Ensure compatibility with SMD/SMT assembly processes and check for any process change notifications (PCN) that may affect material composition or manufacturing location. Validate supply chain authenticity through authorized distributors.

Crystals Selection Notes

Select this component when a 13 MHz reference signal is required with ±30 ppm tolerance. Consider the 18 pF load capacitance requirement for circuit matching. Evaluate the 50 Ohm ESR against driver capability. The wide temperature range supports harsh environments. Compare physical footprint constraints against the 11.4 x 4.7 x 4.2 mm dimensions. Assess if the HC-49/US form factor fits the PCB layout requirements.

Crystals Part Context

This component belongs to the ABLS series of low-profile crystals from Abracon. It serves as a timing reference in digital circuits requiring precise frequency generation. The series is engineered for reliability in consumer, industrial, and automotive sectors. It replaces traditional through-hole crystals with a compact surface-mount alternative.
