ABM10-12.000MHZ-8-R150-1-E10-T

Crystals Overview

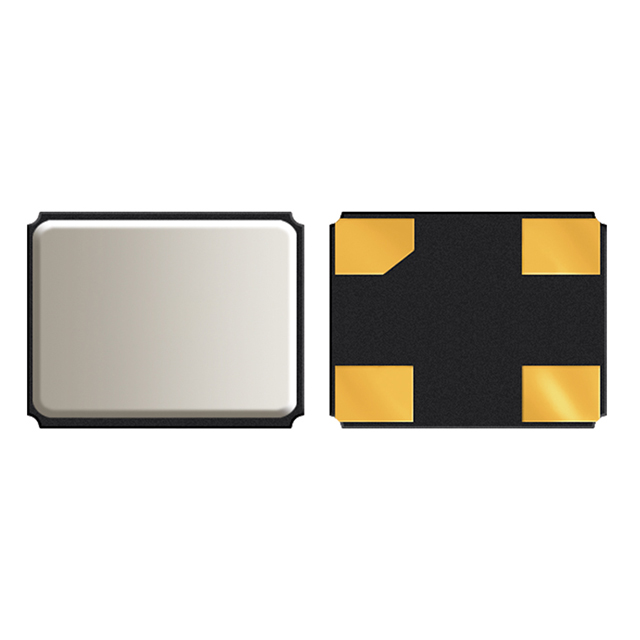

The ABM10-12.000MHZ-8-R150-1-E10-T is a parallel fundamental quartz crystal manufactured by Abracon LLC. It operates at a nominal frequency of 12 MHz with an 8 pF load capacitance and a maximum series resistance of 150 Ohms. The component features a ±10 ppm initial frequency tolerance and ±10 ppm total frequency stability over the operating temperature range of -40°C to +85°C. Designed for surface mount applications, it utilizes a compact 4-SMD ceramic package measuring 2.50 mm x 2.00 mm x 0.55 mm. The device supports a drive level of 10 µW and complies with RoHS standards.

Crystals Feature Summary

• Compact miniature ceramic surface-mount design suitable for space-constrained PCB layouts
• High frequency stability ensuring precise timing performance across industrial temperature ranges
• Compliant with RoHS directives for environmentally friendly manufacturing

Crystals Applications

• General purpose microcontroller clock sources
• Communication interface timing circuits
• Industrial control system oscillators

Crystals Procurement Notes

Verify the specific suffix configuration against official Abracon documentation to ensure alignment with required load capacitance and tolerance specifications. Confirm that the selected variant matches the intended operating temperature range and package dimensions for your application. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 12 MHz reference signal is required with tight initial tolerance and stability constraints. Ensure the circuit design accommodates the specified 8 pF load capacitance to maintain accurate frequency output. Verify that the 150 Ohm maximum series resistance aligns with the oscillator driver strength capabilities of the target host device to guarantee reliable startup conditions.

Crystals Part Context

This part belongs to the ABM10 series of miniature crystals from Abracon. The series is characterized by small form factors and robust performance in standard commercial and industrial environments. The specific model integrates standard parallel resonance characteristics optimized for general-purpose digital logic and processor clocking applications requiring stable frequency references.

Crystals Replacement Considerations

Direct substitutes must match the 12 MHz frequency, 8 pF load capacitance, 150 Ohm ESR, and 2.5x2.0 mm footprint. Verify equivalent tolerance and stability ratings to ensure functional compatibility without circuit modification.
