ABM10A-18.432MHZ-10-D2Y-T3

Crystals Overview

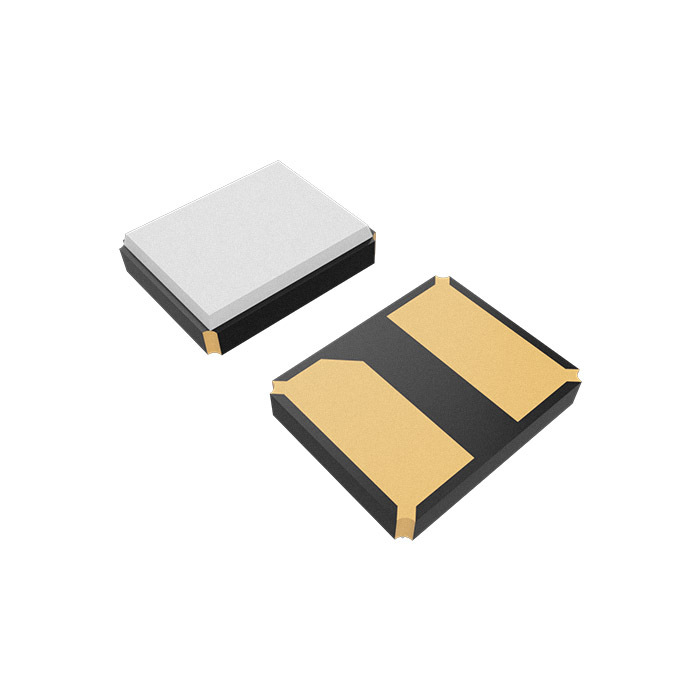

The ABM10A-18.432MHZ-10-D2Y-T3 is a surface-mount ceramic crystal manufactured by Abracon LLC, operating at a nominal frequency of 18.432 MHz. It features a load capacitance of 10 pF and an equivalent series resistance (ESR) of 80 Ohms. The component exhibits a frequency tolerance of ±15 ppm and a stability of ±30 ppm across the industrial temperature range of -40°C to +85°C. Packaged in a compact 2-SMD footprint measuring 2.5 mm x 2.0 mm with a height of 0.6 mm, it utilizes a no-lead termination style suitable for automated SMT assembly processes.

Crystals Feature Summary

• Compact 2.5mm x 2.0mm surface-mount package design
• Industrial temperature range operation from -40°C to +85°C
• No-lead termination style for reliable SMT integration

Crystals Applications

• IoT device clock generation
• Microcontroller system timing
• Communication module synchronization

Crystals Procurement Notes

Verify the specific ordering suffix against the official Abracon datasheet to ensure correct tolerance and packaging specifications. Confirm RoHS compliance status and lead time requirements directly with authorized distributors prior to order placement. Ensure the selected variant matches the required load capacitance and ESR values for the target circuit design.

Crystals Selection Notes

Select this component when a 18.432 MHz reference signal is required within a constrained PCB area. The 10 pF load capacitance must align with the oscillator circuit's external capacitor values. Consider the ±15 ppm tolerance for applications requiring moderate frequency accuracy without the cost of TCXO solutions.

Crystals Part Context

This part belongs to the ABM10A series of ultra-thin, low-profile crystals designed for space-constrained portable electronics. The series emphasizes miniaturization while maintaining standard electrical characteristics for common microcontroller and communication interfaces.

Crystals Replacement Considerations

ABM10A-18.432MHZ-8-D2Y-T3
