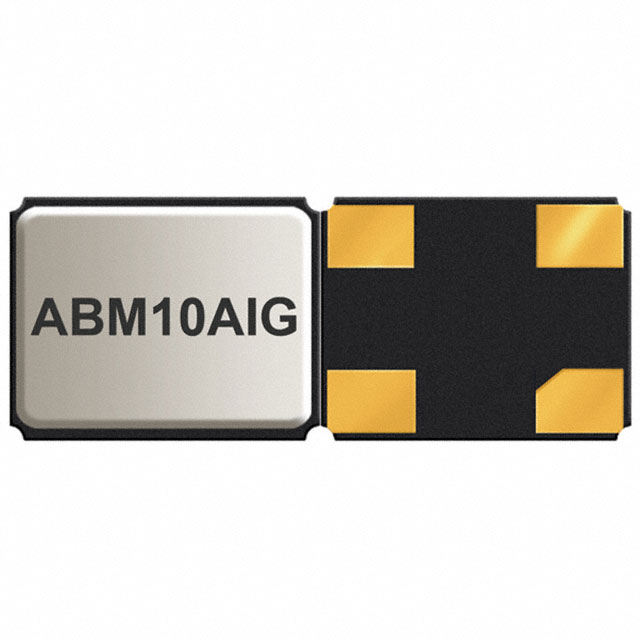

ABM10AIG-32.000MHZ-4Z-T3

$0.40

Description：CRYSTAL 32.0000MHZ 10PF SMD
Series：ABM10AIG
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:103a65fc5443 Category: Crystals Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ABM10AIG-32.000MHZ-4Z-T3 is listed in the Crystals range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is CRYSTAL 32.0000MHZ 10PF SMD. Review the specifications below when checking this part for your BOM.

Crystals specifications for ABM10AIG-32.000MHZ-4Z-T3

Description：CRYSTAL 32.0000MHZ 10PF SMD
Series：ABM10AIG
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：MHz Crystal
Frequency：32 MHz
Frequency Stability：±50ppm
Frequency Tolerance：±30ppm
Load Capacitance：10pF
ESR (Equivalent Series Resistance)：50 Ohms
Operating Mode：Fundamental
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Mounting Type：Surface Mount
Package / Case：4-SMD, No Lead
Supplier Device Package：4-SMD (2.55x2.05)
Size / Dimension：0.100" L x 0.081" W (2.55mm x 2.05mm)
Height - Seated (Max)：0.026" (0.65mm)

Crystals datasheet and documents for ABM10AIG-32.000MHZ-4Z-T3

ABM10AIG-32.000MHZ-4Z-T3

Crystals Overview

The ABM10AIG-32.000MHZ-4Z-T3 is a fundamental parallel quartz crystal manufactured by Abracon LLC, designed for automotive and industrial applications. It operates at a nominal frequency of 32 MHz with a load capacitance of 10 pF. The component features a frequency tolerance of ±30 ppm and stability of ±50 ppm over the operating temperature range. It is housed in a compact 4-SMD, no-lead package measuring 2.5 mm x 2.0 mm with a maximum height of 0.60 mm. The unit supports an extended operating temperature range from -40°C to +125°C and is qualified under AEC-Q200 standards.

Crystals Feature Summary

Hermetically sealed ceramic package ensures high precision and reliability
Ultra-miniature low-profile surface mount design
Extended operating temperature range suitable for harsh environments
Compliant with RoHS directives and lead-free manufacturing

Crystals Applications

Automotive navigation systems
Car entertainment systems
Instrument panels
Telematics units
Industrial automation control

Crystals Procurement Notes

Verify that the specific part number matches the required frequency and tolerance specifications before integration. Confirm that the supplier provides valid documentation regarding AEC-Q200 qualification status. Ensure that the procurement channel offers genuine components from Abracon LLC to avoid counterfeit risks. Check for any recent product change notices that might affect pinout or material composition.

Crystals Selection Notes

Select this component when a small form factor is required for automotive or industrial circuit boards. The 32 MHz frequency is suitable for microcontroller clock sources or communication interfaces. Consider the 10 pF load capacitance requirement to ensure proper oscillator circuit tuning. The wide temperature range makes it appropriate for applications exposed to extreme thermal conditions.

Crystals Part Context

This component belongs to the ABM10AIG series, which represents ultra-miniature ceramic base SMD crystals. The series is specifically engineered for automotive and industrial grade applications requiring high reliability. The 'T3' suffix indicates tape and reel packaging options available for automated assembly processes.
