ABM10N-40.0000MHZ-12-D2Y-T3

Crystals Overview

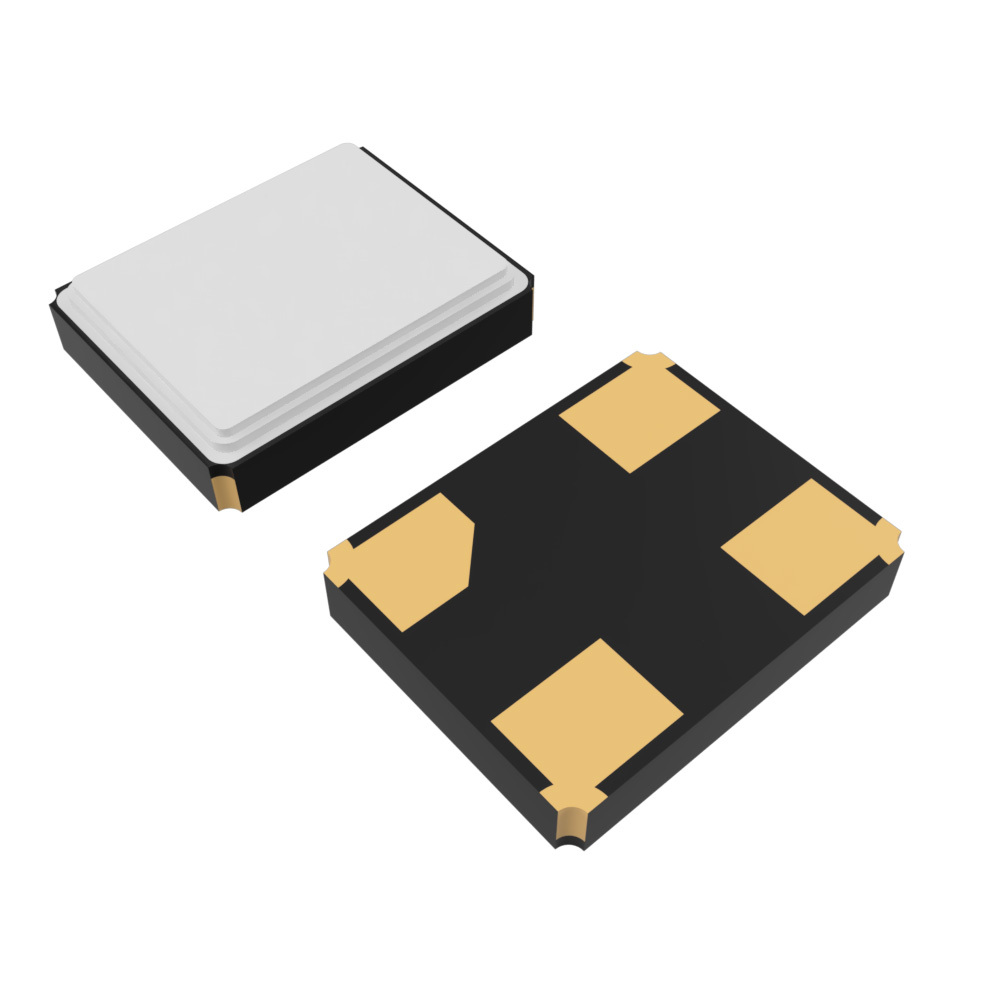

The Abracon ABM10N-40.0000MHZ-12-D2Y-T3 is a parallel fundamental quartz crystal operating at a nominal frequency of 40 MHz. It features a ±20 ppm initial frequency tolerance and ±30 ppm total frequency stability over temperature. The component utilizes a 12 pF load capacitance and exhibits a series resistance (ESR) of 30 Ohms. Designed for surface mount applications, it operates within a temperature range of -40°C to +85°C. The device is housed in a compact 4-SMD, no-lead package, ensuring reliable performance in space-constrained electronic designs requiring precise timing.

Crystals Feature Summary

• Provides stable oscillation with high frequency accuracy for digital systems
• Supports automated surface mount assembly processes
• Ensures compliance with environmental standards including RoHS

Crystals Applications

• Microcontroller clock sources
• Communication module timing references
• Embedded system synchronization circuits

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact electrical parameters and packaging configuration. Ensure compatibility with the target circuit's load capacitance requirements before integration. Confirm that the selected variant meets all necessary automotive or industrial qualification standards if applicable to the end product design.

Crystals Selection Notes

Select this component when a 40 MHz reference with ±20 ppm tolerance is required for surface mount PCB layouts. Consider the 30 Ohm ESR value for oscillator circuit design to ensure proper startup conditions. Evaluate the -40°C to +85°C operating range against the environmental conditions of the final application to guarantee long-term reliability.

Crystals Part Context

This part belongs to the ABM10N series of parallel resonant crystals from Abracon. The series is characterized by its small footprint and suitability for high-volume manufacturing. It serves as a critical timing element in various consumer and industrial electronics, offering a balance between performance, size, and cost-effectiveness for standard frequency applications.

Crystals Replacement Considerations

Direct substitutes include ABM10N-40.0000MHZ-12-D2X-T3 and ABM10N-40.0000MHZ-12-D4Y-T3, provided they match the required tolerance and stability specifications for the specific design.
