ABM11-25.000MHZ-D7X-T3

Crystals Overview

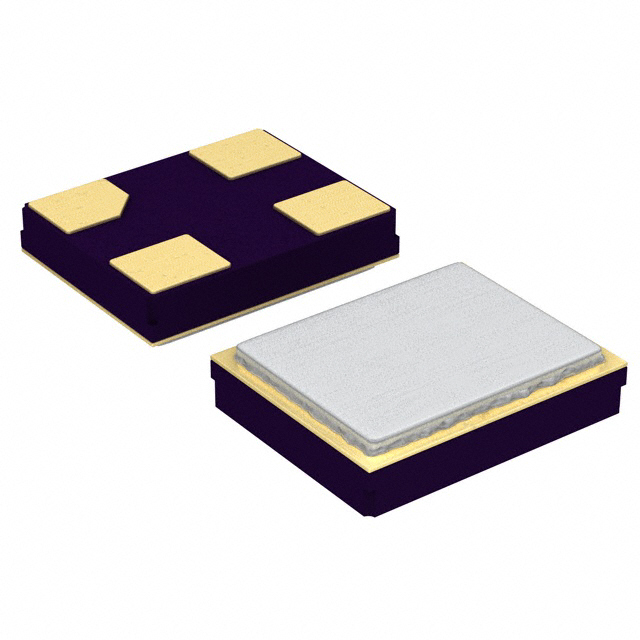

The ABM11-25.000MHZ-D7X-T3 is a 25 MHz ultra-miniature quartz crystal oscillator manufactured by Abracon LLC. It operates within a frequency tolerance of ±15 ppm and maintains a frequency stability of ±15 ppm across the industrial temperature range of -20°C to +70°C. The component features a load capacitance of 10 pF and an equivalent series resistance (ESR) of 100 Ohms. Designed for surface-mount applications, it utilizes a compact 4-SMD, no-lead package measuring 2 mm in length, 1.6 mm in width, and 0.59 mm in height. The device supports a maximum drive level of 10 uW.

Crystals Feature Summary

• Ultra-miniature SMD form factor suitable for space-constrained PCB layouts
• Industrial-grade temperature stability ensuring reliable operation from -20°C to +70°C
• Low equivalent series resistance for efficient circuit integration

Crystals Applications

• IoT sensor modules requiring precise timing
• Microcontroller clock sources
• Communication interface circuits

Crystals Procurement Notes

Verify the specific suffix D7X against the official Abracon datasheet to confirm the exact frequency tolerance and temperature range specifications. Ensure the ordering code matches the required load capacitance and ESR values for your circuit design. Confirm RoHS compliance status through the manufacturer's documentation before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 25 MHz reference signal is required with ±15 ppm tolerance. The 10 pF load capacitance must match the oscillator circuit requirements. Verify that the operating environment stays within the -20°C to +70°C range. Consider the 2x1.6mm footprint constraints during PCB layout planning.

Crystals Part Context

This part belongs to the ABM11 series of ultra-miniature quartz crystals from Abracon. The series is characterized by small physical dimensions and standardized electrical parameters for general-purpose timing applications. The D7X suffix indicates specific manufacturing variations regarding tolerance and temperature performance compared to other variants in the same family.

Crystals Replacement Considerations

Cross-reference with ABM11-25.000MHZ-B7G-T for similar 25 MHz performance. Verify compatibility with ABM11-25.000MHZ-D2X-T3 if different tolerance or packaging options are needed. Always validate pinout and electrical characteristics against the target application requirements.
