ABM11-32.000MHZ-R60-D1X-T

Crystals Overview

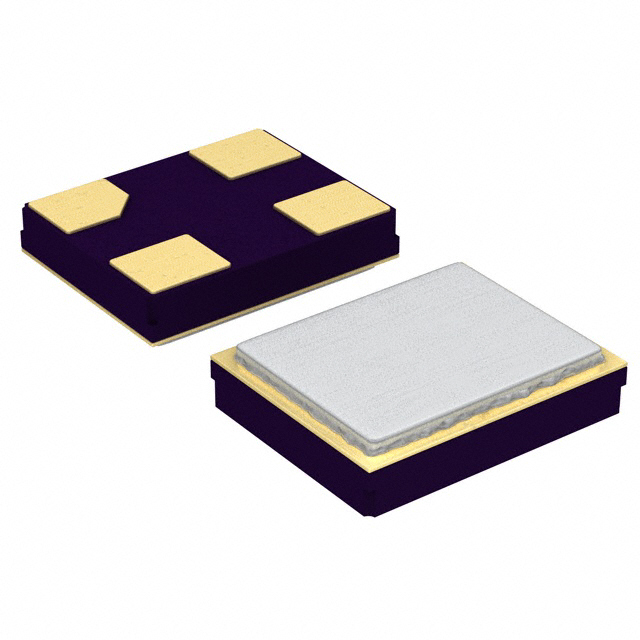

The ABM11-32.000MHZ-R60-D1X-T is a 32 MHz ultra-miniature quartz crystal manufactured by Abracon LLC. It features a 4-SMD, no lead package with dimensions of 2.0 mm x 1.6 mm x 0.59 mm. The component operates within a temperature range of -40°C to +85°C and offers a frequency tolerance of ±10 ppm and stability of ±20 ppm. Key electrical specifications include a load capacitance of 10 pF and an equivalent series resistance (ESR) of 60 Ohms.

Crystals Feature Summary

• Ultra-miniature 2016 footprint designed for high-density surface mount applications
• Wide industrial operating temperature range from -40°C to +85°C
• Low profile 0.59 mm height suitable for space-constrained devices

Crystals Applications

• Mobile communication devices
• Wearable electronics
• IoT modules requiring compact timing solutions

Crystals Procurement Notes

Verify the specific suffix R60-D1X-T against official Abracon documentation to confirm packaging and tape/reel specifications. Ensure the requested quantity aligns with standard factory pack sizes. Confirm RoHS compliance status through the latest datasheet revision before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 32 MHz reference is required in a 2016 SMD package. Compare ESR values of 60 Ohms against circuit requirements. Consider the ±20 ppm stability for general clocking needs. Evaluate thermal performance within the specified -40°C to +85°C range for environmental suitability.

Crystals Part Context

This part belongs to the ABM11 series of ultra-miniature crystals from Abracon. The series provides standardized timing solutions for portable electronics. The model specifies a 32 MHz fundamental frequency with defined electrical parameters for integration into consumer and industrial hardware designs.

Crystals Replacement Considerations

Cross-reference compatible parts such as ABM11-32.000MHZ-B7G-T or ABM11W-32.0000MHZ-7-B1U-T3. Verify that substitute components match the 2016 package dimensions and 32 MHz frequency. Check if alternative ESR and load capacitance values are acceptable for the target application.
