ABM11N-27.1200MHZ-6-D4Y-T3

Crystals Overview

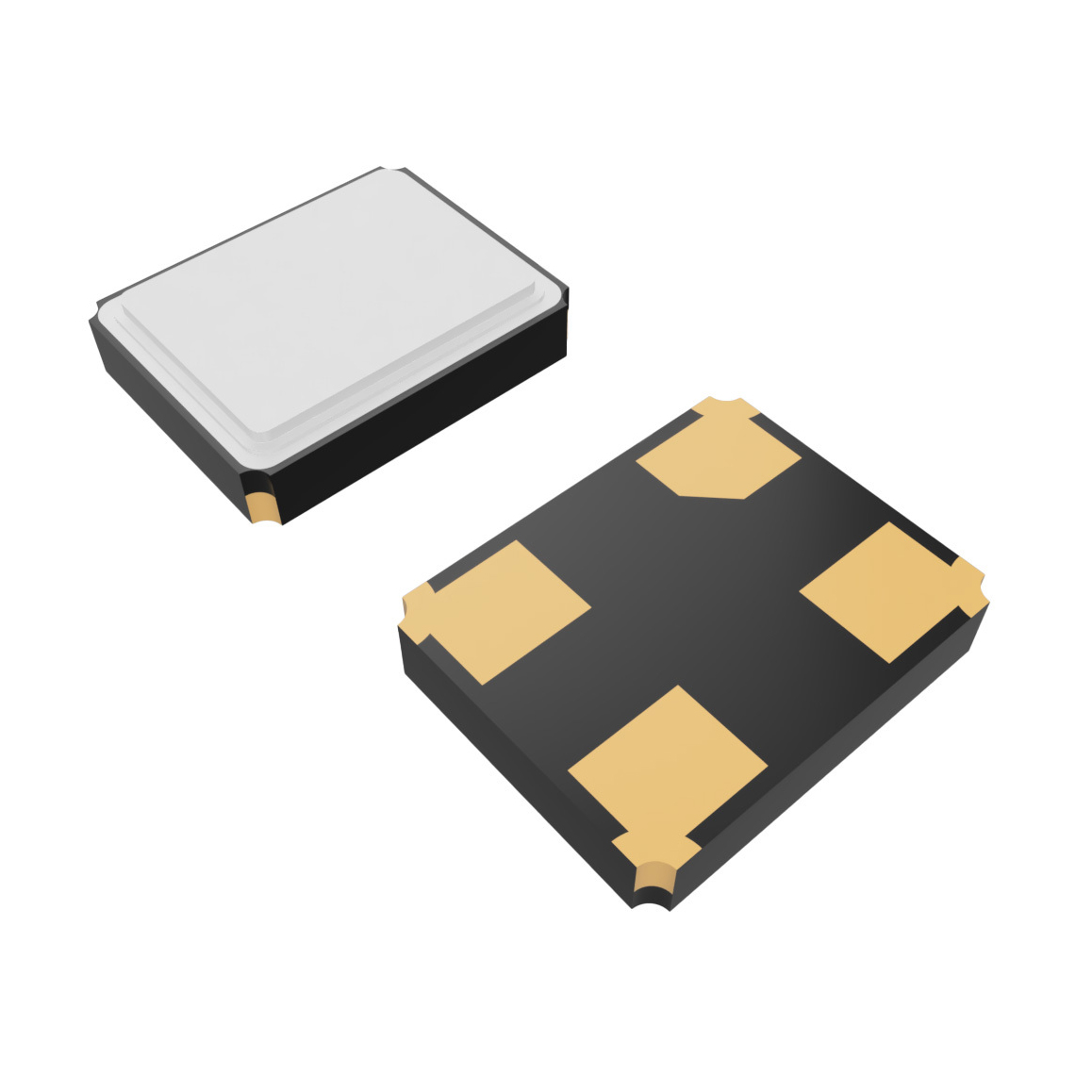

The ABM11N-27.1200MHZ-6-D4Y-T3 is a surface-mount quartz crystal manufactured by Abracon LLC, operating at a fundamental frequency of 27.12 MHz. It features a load capacitance of 6 pF and an equivalent series resistance (ESR) of 100 Ohms. The component offers a frequency tolerance of ±30 ppm and stability of ±30 ppm. Designed for automotive applications, it meets AEC-Q200 qualification standards and operates within a temperature range of -55°C to +125°C. The device utilizes a 4-SMD, no lead package with dimensions of 2.00mm x 1.60mm.

Crystals Feature Summary

• AEC-Q200 qualified for automotive reliability
• Ultra-miniature 2016 SMD footprint
• Fundamental mode operation

Crystals Applications

• Automotive electronic systems
• Industrial control circuits
• Consumer electronics requiring high stability

Crystals Procurement Notes

Verify the specific suffix D4Y against the official Abracon datasheet to confirm the exact temperature range and tolerance specifications, as suffixes define critical environmental ratings. Ensure the ordering part number matches the required load capacitance of 6 pF for circuit compatibility. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 27.12 MHz reference signal is required in space-constrained designs. The 2016 package size supports high-density PCB layouts. Verify that the system oscillator circuit can support the 6 pF load capacitance and 100 Ohm ESR characteristics. Consider the extended temperature range if the application environment exceeds standard commercial limits.

Crystals Part Context

This part belongs to the ABM11N series of ultra-miniature quartz crystals from Abracon. The series is designed for applications demanding small form factors and robust performance. The ABM11N line typically includes variants with different frequencies, load capacitances, and packaging options to suit diverse electronic design requirements.

Crystals Replacement Considerations

Cross-reference with other Abracon ABM11N variants sharing the same 27.12 MHz frequency and 6 pF load capacitance. Verify mechanical footprint compatibility and electrical parameters such as ESR and stability before substituting.
