ABM12AIG-25.000MHZ-10-1Z-T

Crystals Overview

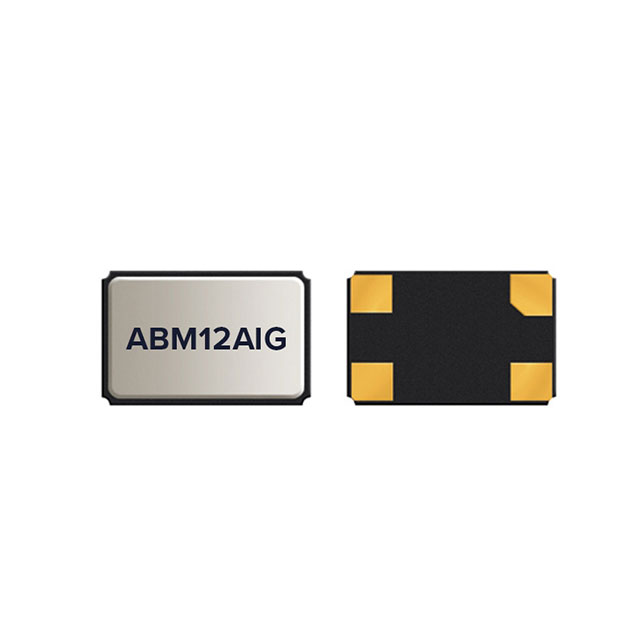

The Abracon ABM12AIG-25.000MHZ-10-1Z-T is a surface-mount quartz crystal oscillator operating at 25 MHz. It features a frequency tolerance of ±10 ppm and stability of ±50 ppm across the -40°C to +125°C temperature range. The component utilizes a 1612 (1.6mm x 1.2mm) package with four SMD terminals. Electrical specifications include a load capacitance of 10 pF, equivalent series resistance of 150 Ohms, and an excitation level of 10 uW. It holds AEC-Q200 qualification for automotive reliability.

Crystals Feature Summary

• Automotive-grade reliability certified under AEC-Q200 standards
• High-frequency stability within tight tolerance limits
• Compact surface-mount footprint for space-constrained designs

Crystals Applications

• Advanced Driver Assistance Systems (ADAS) clock sources
• Automotive domain controller timing circuits
• Powertrain control unit synchronization

Crystals Procurement Notes

Verify the specific suffix codes against the official datasheet to ensure correct tolerance and stability ratings. Confirm that the ordering part number matches the required frequency and package dimensions. Check for any recent discontinuation notices or lifecycle status updates from the manufacturer before finalizing procurement decisions.

Crystals Selection Notes

Select this component when a compact 1612 package is required for high-stability automotive applications. Ensure the circuit design supports the specified 10 pF load capacitance and 150 Ohm ESR. Validate that the -40°C to +125°C operating range meets the environmental requirements of the target application zone.

Crystals Part Context

This model belongs to the ABM12AIG series of miniature ceramic-based crystals designed for harsh environments. The series provides a balance between small form factor and robust performance, suitable for modern electronic systems requiring precise timing in limited physical spaces.

Crystals Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching frequency, package size, tolerance, and AEC-Q200 certification independently.
