ABM12N-26.0000MHZ-6-D1G-T3

Crystals Overview

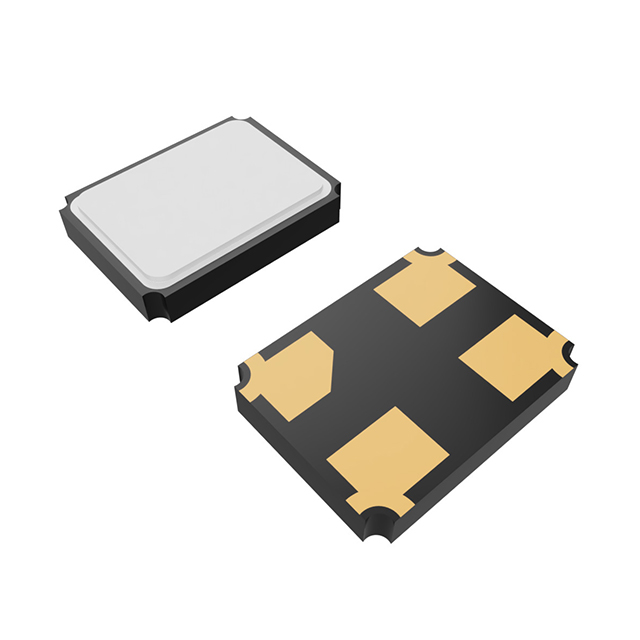

The Abracon ABM12N-26.0000MHZ-6-D1G-T3 is an ultra-miniature parallel fundamental quartz crystal designed for IoT applications. It operates at a nominal frequency of 26 MHz with a frequency tolerance of ±10 ppm and stability of ±15 ppm across the operating temperature range of -40°C to +85°C. The component features a load capacitance of 6 pF, equivalent series resistance (ESR) of 100 Ohms, and a drive level of 10 µW. Its physical dimensions are 1.6mm x 1.2mm x 0.4mm in a four-pad SMD package without leads.

Crystals Feature Summary

• Ultra-miniature AT-Cut design optimized for space-constrained IoT wearable devices
• Hermetically sealed ceramic construction ensuring moisture resistance
• Low equivalent series resistance supporting stable oscillation in low-power modes

Crystals Applications

• Wearable health monitoring devices
• Bluetooth Low Energy (BLE) modules
• IoT sensor nodes requiring compact form factors

Crystals Procurement Notes

Verify that the specific ordering suffix matches the required load capacitance and frequency tolerance for your circuit design. Confirm compliance with RoHS II standards if exporting to regulated regions. Ensure the hermetic seal integrity meets environmental requirements for your specific deployment scenario before finalizing procurement.

Crystals Selection Notes

Select this component when system constraints demand a thickness below 0.5mm alongside a 26 MHz reference. The 6 pF load capacitance must align with the host MCU's internal or external capacitor configuration. Consider the 100 Ohm ESR limit to ensure reliable startup under varying voltage and temperature conditions typical in battery-powered wearables.

Crystals Part Context

This part belongs to the ABM12N series, which provides ultra-miniature crystals specifically engineered for Internet of Things (IoT) applications. The series utilizes AT-Cut technology to maintain frequency stability over wide temperature ranges while minimizing physical footprint. It serves as a critical timing element for microcontrollers and wireless transceivers in portable electronics.

Crystals Replacement Considerations

Direct substitutes within the same family include the ABM12N-26.0000MHZ-8-D1G-T3 and ABM12N-26.0000MHZ-10-D1G-T3. These variants share identical physical dimensions and base specifications but differ in load capacitance values of 8 pF and 10 pF respectively. Verify circuit compatibility regarding load capacitance before substitution.
