ABM12W-24.0000MHZ-6-D1X-T3

Crystals Overview

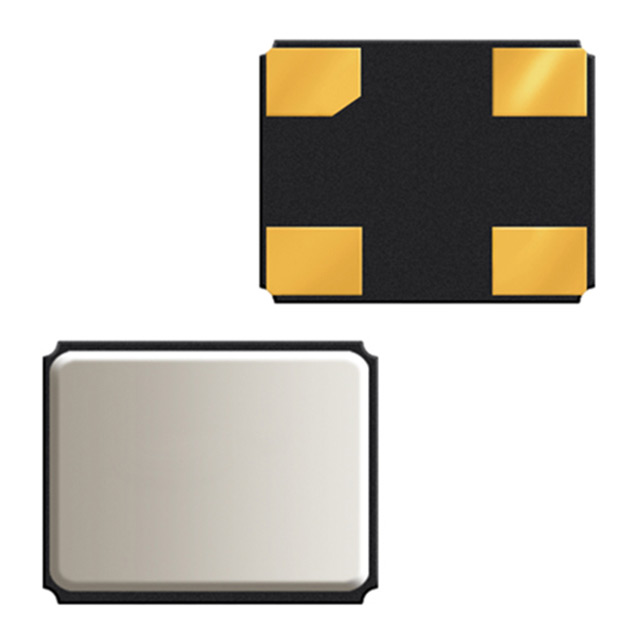

The ABM12W-24.0000MHZ-6-D1X-T3 is a parallel fundamental quartz crystal manufactured by Abracon LLC, designed for surface-mount applications. It operates at a nominal frequency of 24 MHz with a load capacitance of 6 pF. The component features a frequency tolerance of ±10 ppm and a stability of ±20 ppm. Its physical dimensions are 1.6 mm x 1.2 mm x 0.4 mm, utilizing a 4-SMD no-lead package. Key electrical parameters include an equivalent series resistance (ESR) of 100 Ohms and a drive level of 10 µW. The device supports an operating temperature range of -40°C to +85°C.

Crystals Feature Summary

• Ultra-thin 0.4 mm profile in a compact 1.6x1.2 mm SMD package for space-constrained designs
• Low drive level operation of 10 µW optimized for power efficiency
• High stability performance with ±10 ppm initial tolerance and ±20 ppm over temperature

Crystals Applications

• IoT sensor modules requiring low power consumption
• Wearable electronics with strict height limitations
• Bluetooth Low Energy (BLE) communication interfaces
• Microcontroller clock sources in portable devices

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure correct load capacitance and tolerance specifications. Confirm RoHS compliance status and packaging options directly with authorized distributors. Cross-reference the part number with the latest revision history to avoid obsolete stock. Ensure storage conditions meet standard requirements for passive components.

Crystals Selection Notes

Select this component when a sub-1mm height constraint exists alongside a need for precise timing in low-power environments. The 6 pF load capacitance suits circuits with minimal external capacitive loading. Consider the 100 Ohm ESR value for oscillator circuit compatibility. Evaluate thermal requirements against the -40°C to +85°C operational range before finalizing the design.

Crystals Part Context

This part belongs to the ABM12W series, which focuses on ultra-low profile crystals for modern miniaturized electronics. The series emphasizes reduced thickness without compromising frequency stability. It targets applications where traditional through-hole or thicker SMD crystals cannot fit within the mechanical envelope of the host device.

Crystals Replacement Considerations

Direct substitutes must match the 1.6x1.2x0.4 mm footprint, 24 MHz frequency, and 6 pF load capacitance. Verify that alternative parts offer comparable ESR and aging rates to maintain oscillator reliability.
