ABM13N-76.8000MHZ-6-DH7G-T5

Crystals Overview

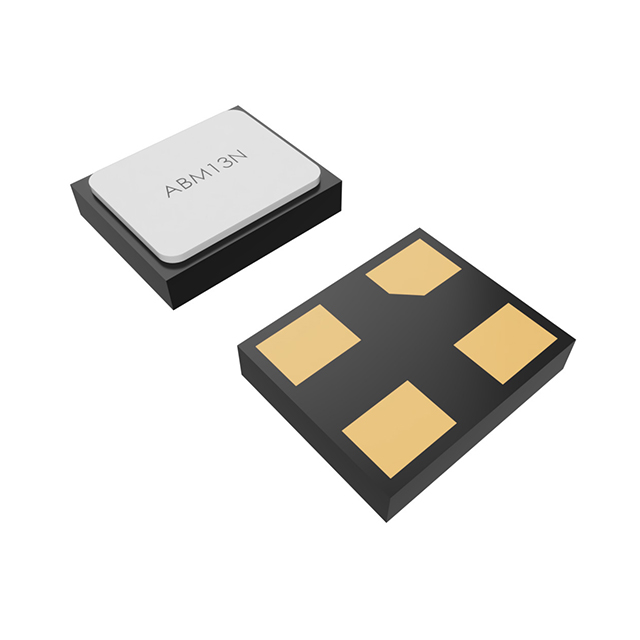

The ABM13N-76.8000MHZ-6-DH7G-T5 is a 76.8 MHz crystal component manufactured by Abracon LLC. It features a frequency tolerance of ±7ppm and stability of ±15ppm across an operating temperature range of -40°C to +85°C. The device operates with a load capacitance of 6pF and has a series resistance of 50 Ohms. It is housed in a compact 4-SMD, No Lead package with dimensions of 1.20mm x 1.00mm.

Crystals Feature Summary

• Provides precise timing signals at 76.8 MHz with high frequency stability for digital systems.
• Designed for surface-mount assembly using a small 4-SMD footprint to save board space.
• Operates reliably within extended industrial temperature ranges from -40°C to +85°C.

Crystals Applications

• High-speed serial communication interfaces requiring stable clock sources
• Network equipment and SONET/SDH systems
• Embedded digital signal processing circuits

Crystals Procurement Notes

Verify the specific suffix DH7G against official datasheets to confirm tape and reel packaging specifications. Ensure the load capacitance requirement matches the target circuit design. Confirm that the ±7ppm tolerance meets the system's jitter budget. Check for RoHS compliance status if required by regulatory standards.

Crystals Selection Notes

Select this component when a 76.8 MHz reference is needed with tight initial tolerance. Consider the 6pF load capacitance compatibility with the oscillator circuit. Evaluate the 4-SMD package size constraints against available PCB real estate. Compare stability requirements against the ±15ppm specification over the full temperature range.

Crystals Part Context

This part belongs to the ABM13N series of surface-mount crystals from Abracon. It serves as a passive frequency control element distinct from active oscillators. The series offers various frequency options and package sizes for different embedded applications.

Crystals Replacement Considerations

Cross-reference with other Abracon ABM13N variants sharing identical electrical parameters. Verify pinout and mechanical dimensions before substituting with generic equivalents. Ensure equivalent aging rates and stability metrics are maintained.
