ABM13W-32.0000MHZ-8-N2Y-T5

Crystals Overview

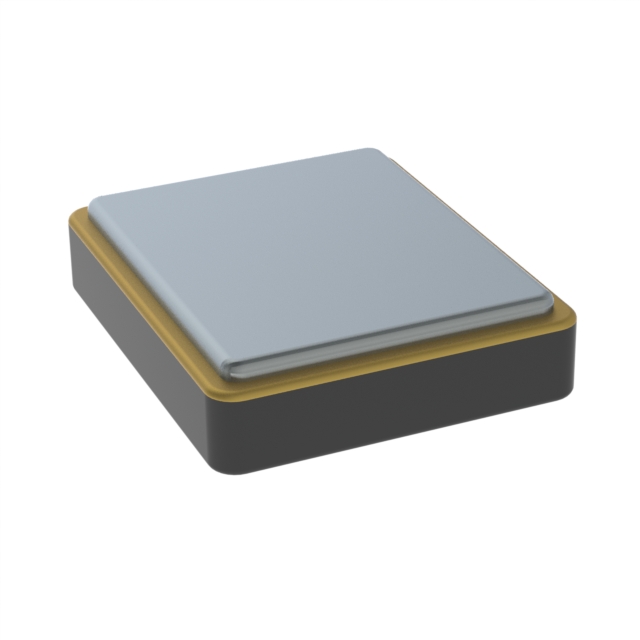

The ABM13W-32.0000MHZ-8-N2Y-T5 is an ultra-miniature quartz crystal manufactured by Abracon LLC, designed for surface-mount applications. It operates at a nominal frequency of 32 MHz with a load capacitance of 8 pF. The component exhibits a frequency tolerance of ±20 ppm and a frequency stability of ±30 ppm across the operating temperature range of -30°C to +85°C. Key electrical parameters include an equivalent series resistance (ESR) of 100 Ohms and a drive level of 10 uW. The device features a compact SMD package measuring 1.2 mm in length, 1 mm in width, and 0.33 mm in height.

Crystals Feature Summary

• Ultra-miniature form factor suitable for space-constrained designs
• Optimized low equivalent series resistance for efficient operation
• RoHS compliant construction without moisture sensitivity limitations

Crystals Applications

• IoT sensor modules
• Wearable electronic devices
• Wireless communication systems

Crystals Procurement Notes

Verify the specific ordering suffix against official Abracon documentation to ensure correct packaging and specifications. Confirm that the requested quantity aligns with available reel sizes or cut tape options. Check regional availability as distribution status may vary. Ensure compliance with RoHS standards required for the target assembly process.

Crystals Selection Notes

Select this component when extreme miniaturization is critical for the PCB layout. The 1.2x1.0 mm footprint offers significant size reduction compared to standard crystals. Verify that the system oscillator circuit supports the specified 8 pF load capacitance and 100 Ohm ESR. Consider the -30°C to +85°C temperature range suitability for the intended operational environment.

Crystals Part Context

This part belongs to the ABM13W series, which Abracon markets as the world's smallest AT-cut MHz crystal. The series is engineered specifically for high-density electronics where board space is limited. It utilizes advanced manufacturing techniques to maintain performance metrics within a significantly reduced physical volume compared to traditional crystal packages.

Crystals Replacement Considerations

Direct substitutes must match the 1.2x1.0x0.33 mm package dimensions and 32 MHz frequency. Verify compatibility with the 8 pF load capacitance and similar ESR values to ensure circuit stability. Cross-reference with other ultra-miniature crystal offerings from different manufacturers if supply constraints exist.
