ABM2-15.000MHZ-D4Y-T

Crystals Overview

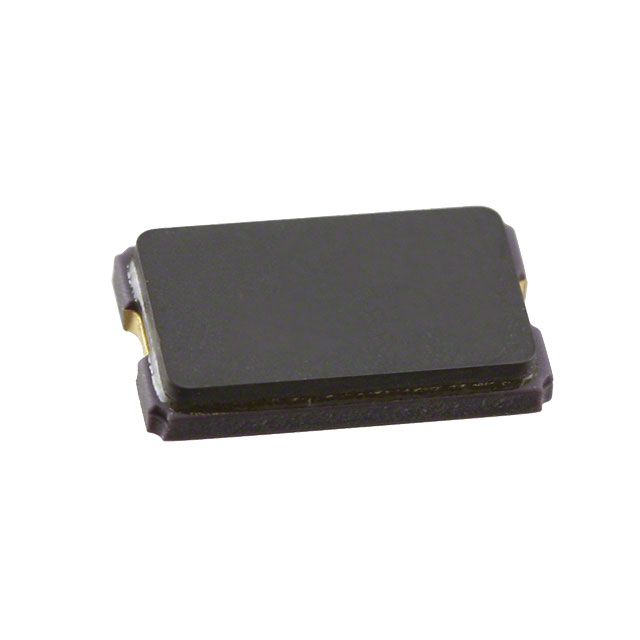

The ABM2-15.000MHZ-D4Y-T is a parallel fundamental quartz crystal manufactured by Abracon LLC, designed for surface-mount applications. It operates at a nominal frequency of 15 MHz with a frequency tolerance and stability of ±30 ppm across a temperature range of -40°C to +85°C. The component features an equivalent series resistance (ESR) of 50 Ohms and requires a load capacitance of 18 pF. Packaged in a compact 2-SMD no-lead ceramic footprint measuring 8.0 mm x 4.5 mm x 1.8 mm, it supports a drive level of 10 µW and complies with RoHS standards.

Crystals Feature Summary

• Surface-mount ceramic package with two solder pads
• AT-cut quartz resonator for stable oscillation
• RoHS compliant construction

Crystals Applications

• Microprocessor clock circuits
• Communication system timing references
• General-purpose oscillator designs

Crystals Procurement Notes

Verify the specific ordering suffix D4Y-T against the manufacturer's current datasheet to confirm package dimensions and terminal configuration. Ensure the selected variant matches the required ESR and load capacitance parameters for the target circuit design. Confirm compliance requirements such as RoHS status prior to final procurement approval.

Crystals Selection Notes

Select this component when a 15 MHz reference signal is required in space-constrained surface-mount layouts. The 50 Ohm ESR and 18 pF load capacitance must align with the host oscillator circuit specifications. Consider the -40°C to +85°C operating range to ensure reliability under expected environmental conditions.

Crystals Part Context

This part belongs to the ABM2 series of microprocessor crystals from Abracon. The series utilizes a ceramic package suitable for automated surface-mount assembly. The ABM2 designation indicates a specific form factor within the manufacturer's portfolio of fundamental mode quartz resonators.

Crystals Replacement Considerations

Cross-reference with other Abracon ABM2 variants sharing identical electrical parameters and physical dimensions. Verify that substitute parts maintain the same 15 MHz frequency, ±30 ppm tolerance, and 18 pF load capacitance requirements.
