ABM3B-8.000MHZ-D2Y-T

Crystals Overview

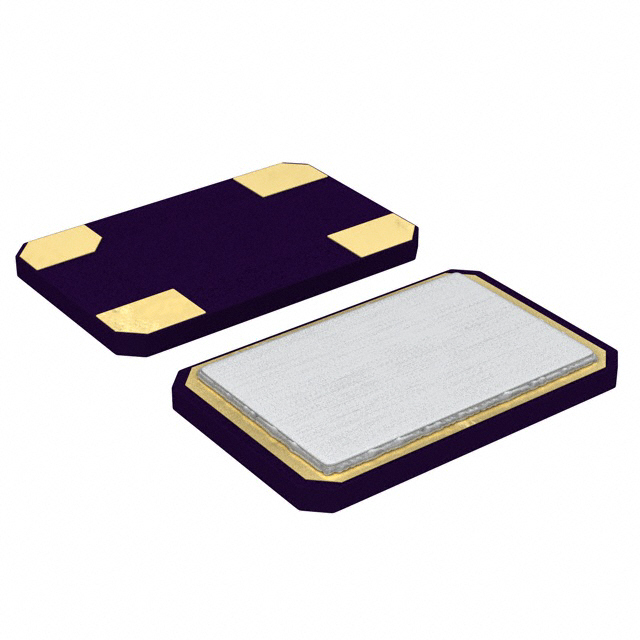

The Abracon ABM3B-8.000MHZ-D2Y-T is a parallel fundamental quartz crystal operating at a nominal frequency of 8 MHz. It features an 18 pF load capacitance and ±20 ppm initial tolerance, with ±30 ppm total frequency stability. The component utilizes a 4-SMD ceramic package measuring 5.0 mm x 3.2 mm x 1.1 mm. It supports a wide operating temperature range from -40°C to +105°C and maintains a maximum equivalent series resistance (ESR) of 200 Ohms.

Crystals Feature Summary

• Fundamental mode operation within a hermetically sealed ceramic package for high precision and reliability.
• Compatible with standard surface mount reflow soldering processes.
• RoHS compliant construction ensuring environmental safety standards.

Crystals Applications

• Cellular telephones and mobile communication devices
• PCMCIA cards and wireless applications
• Communication and test equipment

Crystals Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact electrical parameters, including tolerance, stability, and aging rates. Ensure the ordering code matches the required frequency and load capacitance specifications for the target circuit design before finalizing procurement.

Crystals Selection Notes

Select this component when a robust ceramic package is required for high-reliability applications. The 5x3.2 mm footprint offers a balance between size and performance. Verify that the circuit's load capacitance matches the 18 pF specification to ensure accurate frequency generation.

Crystals Part Context

This part belongs to the ABM3B series of surface mount crystals manufactured by Abracon LLC. The series is characterized by its ceramic construction and suitability for high-density electronic assemblies requiring stable timing references in portable and industrial environments.

Crystals Replacement Considerations

Direct substitutes include other Abracon ABM3B variants with matching 8 MHz frequency and 18 pF load capacitance. Cross-reference pinout dimensions and ESR limits when considering alternative manufacturers' components.

Crystals FAQ

What is the maximum operating temperature for this crystal?

The maximum operating temperature is +105°C.

Is this component RoHS compliant?

Yes, the ABM3B-8.000MHZ-D2Y-T is RoHS compliant.
