ABM7-16.000MHZ-D2Y-T

Crystals Overview

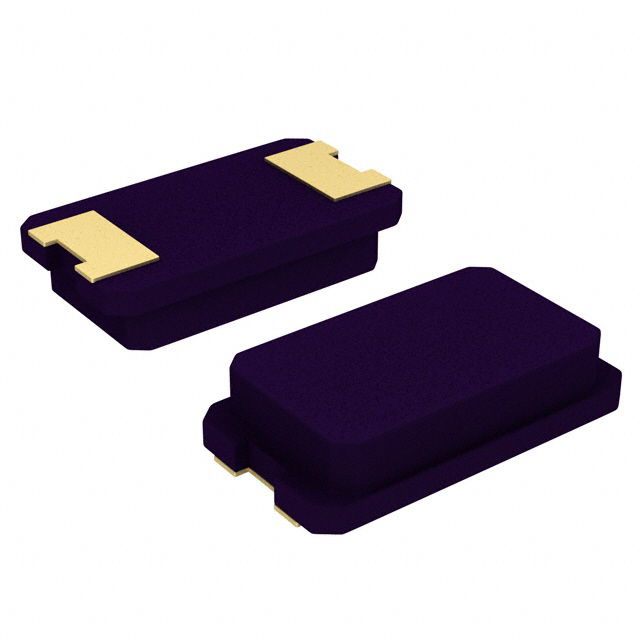

The ABM7-16.000MHZ-D2Y-T is a ceramic crystal oscillator manufactured by Abracon LLC, operating at a standard frequency of 16 MHz. It features a load capacitance of 18 pF and offers a frequency tolerance of ±20 PPM with a stability of ±30 PPM. The component utilizes SMD/SMT termination and operates within a temperature range of -40°C to +85°C. Key electrical parameters include an equivalent series resistance (ESR) of 50 Ohms and an excitation level of 10 uW. The physical dimensions are 6 mm in length, 3.5 mm in width, and 1.4 mm in height, housed in a compact surface-mount package.

Crystals Feature Summary

• Utilizes a robust ceramic construction for reliable oscillation performance.
• Designed for surface-mount technology (SMD/SMT) integration.
• Provides stable frequency output across industrial temperature ranges.

Crystals Applications

• Microprocessor clock generation
• Communication interface timing
• General-purpose digital circuit synchronization

Crystals Procurement Notes

Verify the specific suffix D2Y-T against official Abracon documentation to confirm packaging configuration and terminal finish. Ensure the selected variant matches the required load capacitance and ESR specifications for the target circuit design. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and compliance with current RoHS standards before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 16 MHz reference signal is required with moderate precision and low power consumption. The 18 pF load capacitance must align with the host oscillator circuit's input requirements. Consider the 50 Ohm ESR value for impedance matching and the 10 uW excitation level to minimize aging effects. The 6mm x 3.5mm footprint should be evaluated against available PCB space constraints.

Crystals Part Context

This part belongs to the Abracon ABM7 series of miniature ceramic crystals. The series is characterized by its small form factor and suitability for high-volume surface-mount assembly processes. The ABM7 line typically targets applications requiring reliable timing solutions where board space is limited but performance stability is essential for consistent system operation.

Crystals Replacement Considerations

Direct substitutes may include other 16 MHz ceramic crystals with identical 18 pF load capacitance, ±20 PPM tolerance, and compatible 6x3.5mm SMD footprints. Verify that alternative parts match the 50 Ohm ESR and 10 uW excitation level to ensure circuit compatibility without redesigning the oscillator network.
