ABM8A-25.000MHZ-DY-T3

Crystals Overview

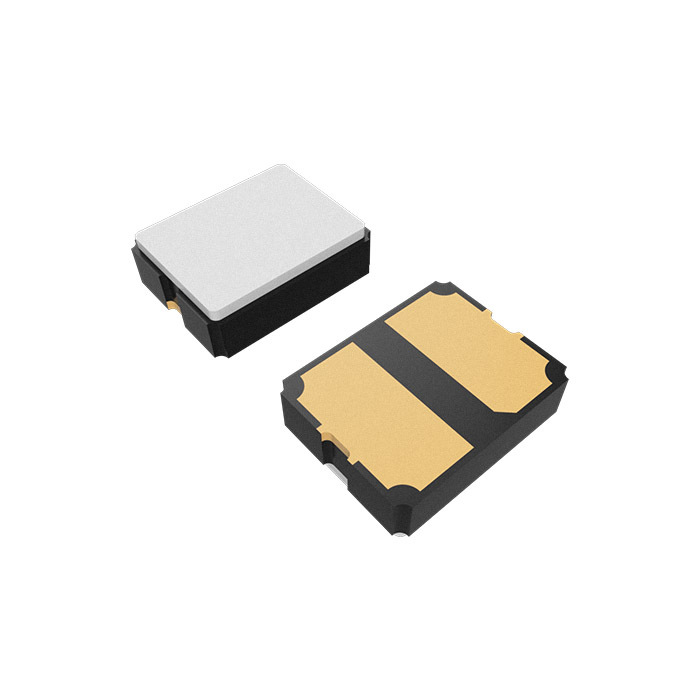

The ABM8A-25.000MHZ-DY-T3 is a surface-mount quartz crystal manufactured by Abracon LLC, operating at a nominal frequency of 25 MHz. It features a frequency tolerance of ±50 ppm and a stability of ±30 ppm within the -40°C to +85°C temperature range. The component utilizes an 8 pF load capacitance and exhibits a series resistance (ESR) of 50 Ohms. Designed for compact electronics, it employs a 2-SMD package configuration suitable for automated assembly processes.

Crystals Feature Summary

• Hermetically sealed ceramic construction ensures high reliability and environmental protection
• Low profile design optimized for space-constrained and thin equipment applications
• RoHS compliant manufacturing process supports modern electronic assembly standards

Crystals Applications

• High density circuit board designs requiring minimal footprint
• Communication systems and modem interfaces
• Test and measurement equipment requiring stable timing references

Crystals Procurement Notes

Verify the specific suffix codes against official Abracon documentation to confirm exact electrical parameters and packaging specifications. Ensure compatibility with reflow soldering profiles and check for any recent product change notifications that may affect performance or availability before finalizing procurement orders.

Crystals Selection Notes

Select this component when a 25 MHz fundamental frequency with moderate stability requirements is needed in a small form factor. Consider the 8 pF load capacitance requirement for oscillator circuit design. Evaluate the thermal range suitability for the intended operational environment and verify pin compatibility with the target PCB layout.

Crystals Part Context

This part belongs to the ABM8A series of ultra-miniature ceramic surface-mount crystals from Abracon. The series is characterized by hermetic sealing and low height profiles, making it distinct from standard non-sealed or larger package alternatives. It serves as a precise timing element for digital circuits requiring reliable frequency generation.

Crystals Replacement Considerations

Direct substitutes must match the 25 MHz frequency, 8 pF load capacitance, and 2-SMD package dimensions. Verify equivalent stability and tolerance ratings to ensure circuit performance continuity without redesigning the oscillator network.
