ABM8G-16.384MHZ-18-D2Y-T3

Crystals Overview

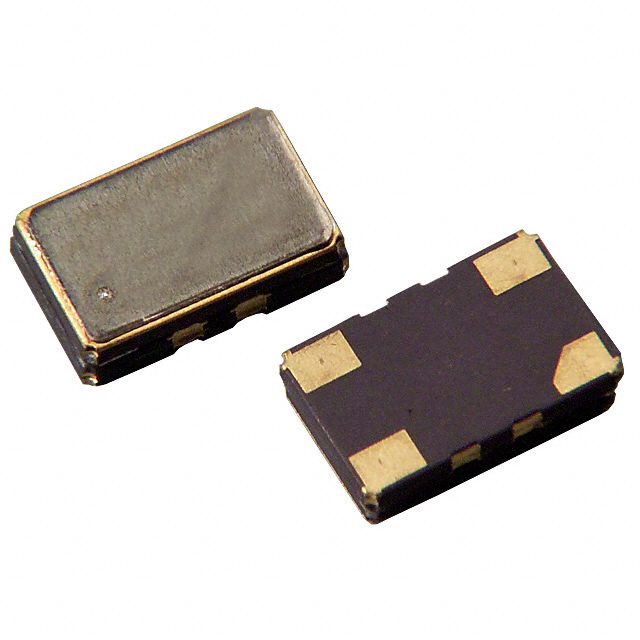

The ABM8G-16.384MHZ-18-D2Y-T3 is a glass-sealed surface-mount crystal manufactured by Abracon LLC. It operates at a fundamental frequency of 16.384 MHz with a load capacitance of 18 pF. The component features a frequency tolerance of ±20 ppm and stability of ±30 ppm. It has an equivalent series resistance (ESR) of 80 Ohms and supports a drive level of 10 uW. The package dimensions are 3.2 mm x 2.5 mm x 1 mm in a 4-SMD, no-lead configuration. The operating temperature range spans from -40°C to +85°C.

Crystals Feature Summary

• Glass-sealed construction for enhanced environmental durability
• Fundamental mode operation for precise timing applications
• Surface-mount design compatible with automated assembly processes

Crystals Applications

• Microcontroller clock sources
• Communication interface timing
• Digital signal processing circuits

Crystals Procurement Notes

Verify the specific suffix T3 against official Abracon documentation to confirm tape-and-reel packaging specifications. Ensure the ordering part number matches the required frequency tolerance and load capacitance parameters. Cross-reference the manufacturer datasheet for RoHS compliance status and moisture sensitivity levels prior to procurement.

Crystals Selection Notes

Select this component when a 16.384 MHz reference is required with ±20 ppm initial tolerance. The 18 pF load capacitance must match the oscillator circuit design. Verify that the 80 Ohm ESR is compatible with the host oscillator's drive requirements. Confirm the -40°C to +85°C temperature range meets the application's thermal constraints.

Crystals Part Context

This part belongs to the ABM8G series of glass-sealed SMD crystals from Abracon. The series offers various frequencies and package sizes. The ABM8G designation indicates a standard 3.2x2.5mm footprint. This specific model provides a common sub-multiplication frequency suitable for digital systems requiring precise clock generation within industrial temperature ranges.

Crystals Replacement Considerations

Direct substitutes include other Abracon ABM8G variants with identical 16.384 MHz frequency, 18 pF load capacitance, and 80 Ohm ESR. Verify pin compatibility and electrical parameters before substitution.
